Baugruppe

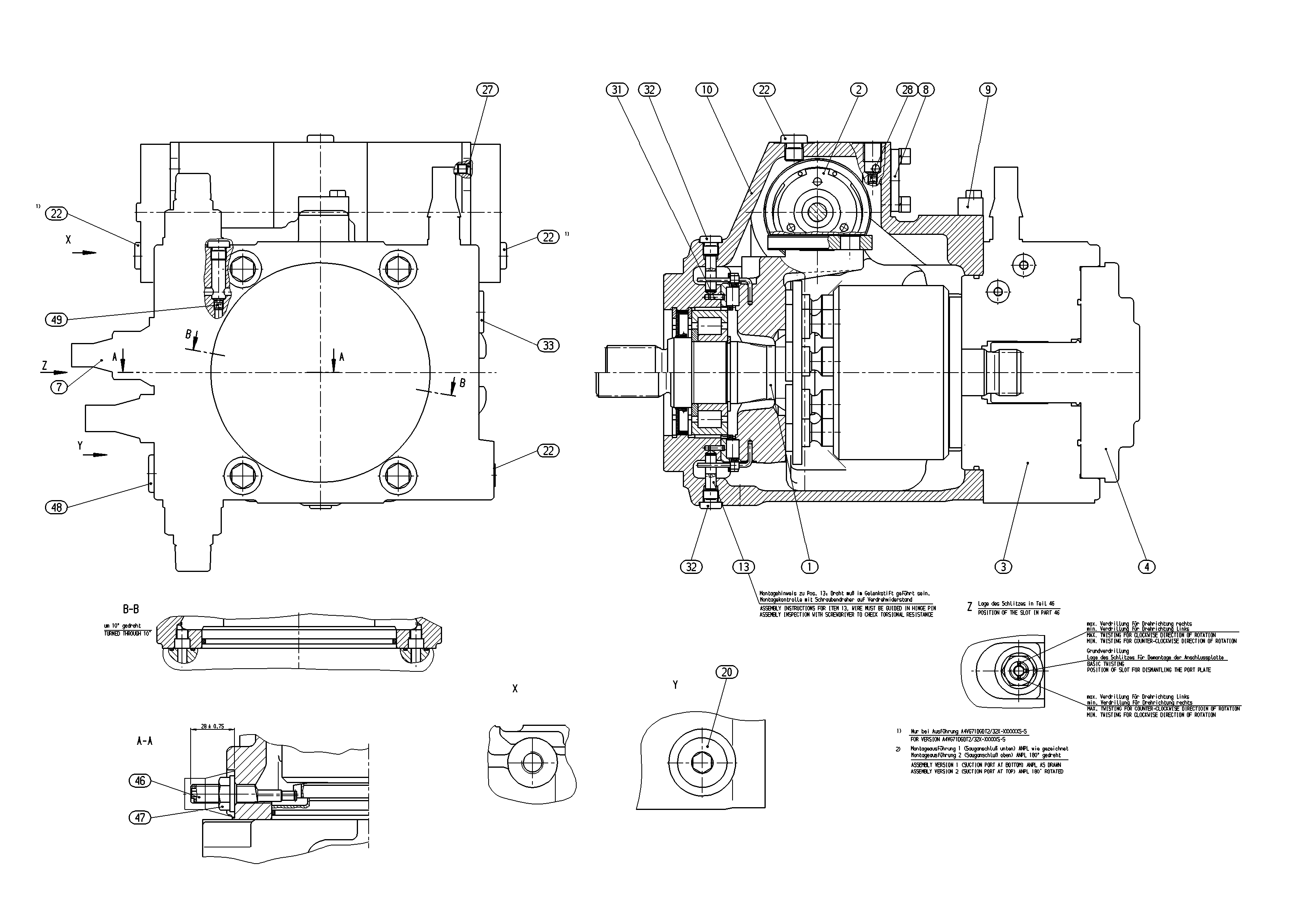

AXIAL-PISTON PUMPR902062626
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902199721 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902016077 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| 3 | R909609869 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | |
| R909606657 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902066044 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | ||
| R909405730 | SEALING PLATE Stückliste der Baugruppe →L | 1 | ||
| R909434380 | SEALING COVER Stückliste der Baugruppe →L | 1 | ||
| R902003862 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909830030 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909436131 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902095649 | SEAL KIT | 1 |
