Baugruppe

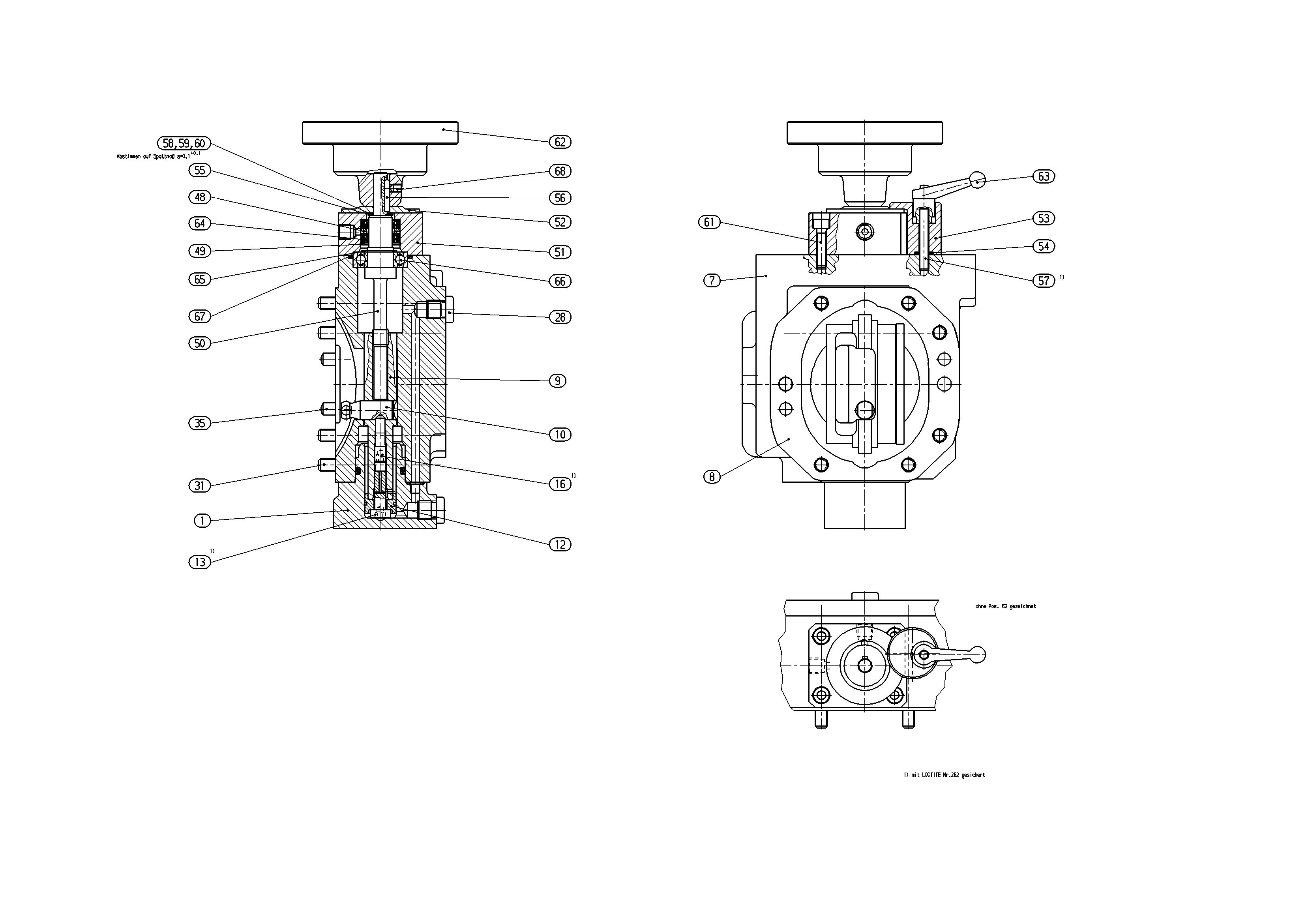

CONTROLR902063860
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902063936 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R902047289 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R902063821 | POSITIONING PISTON | 1 | ||
| R902063822 | POSITIONING STUD | 1 | ||
| R902063823 | PISTON | 1 | ||
| R902063824 | SOCKET HEAD CAP SCREW | 1 | ||
| R902063825 | SETSCREW | 1 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 6 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R902047276 | SPACER RING | 1 | ||
| R909831081 | RETAINING RING | 1 | ||
| R902063820 | ADJUSTMENT SPINDLE | 1 | ||
| R902047274 | COVER | 1 | ||
| R909430630 | CLAMPING DISC | 1 | ||
| R902047411 | EXPANSION PIECE | 1 | ||
| R909411160 | DISC SPRING | 4 | ||
| R902107668 | SUPPORTING DISC | 1 | ||
| R909430627 | PARALLEL KEY | 1 | ||
| R909154057 | SETSCREW | 1 | ||
| R909153401 | SHIM RING | 2 | ||
| R909153402 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156613 | HANDWHEEL | 1 | ||
| R909830246 | CLAMPING LEVER | 1 | ||
| R909156373 | SHAFT SEALING RINGD | 2 | ||
| R909831079 | RETAINING RING | 1 | ||
| R902602036 | DEEP-GROOVE BALL BEARING | 1 | ||
| R902600667 | O-RINGD | 1 | ||
| R909154098 | SETSCREW | 1 |
