Baugruppe

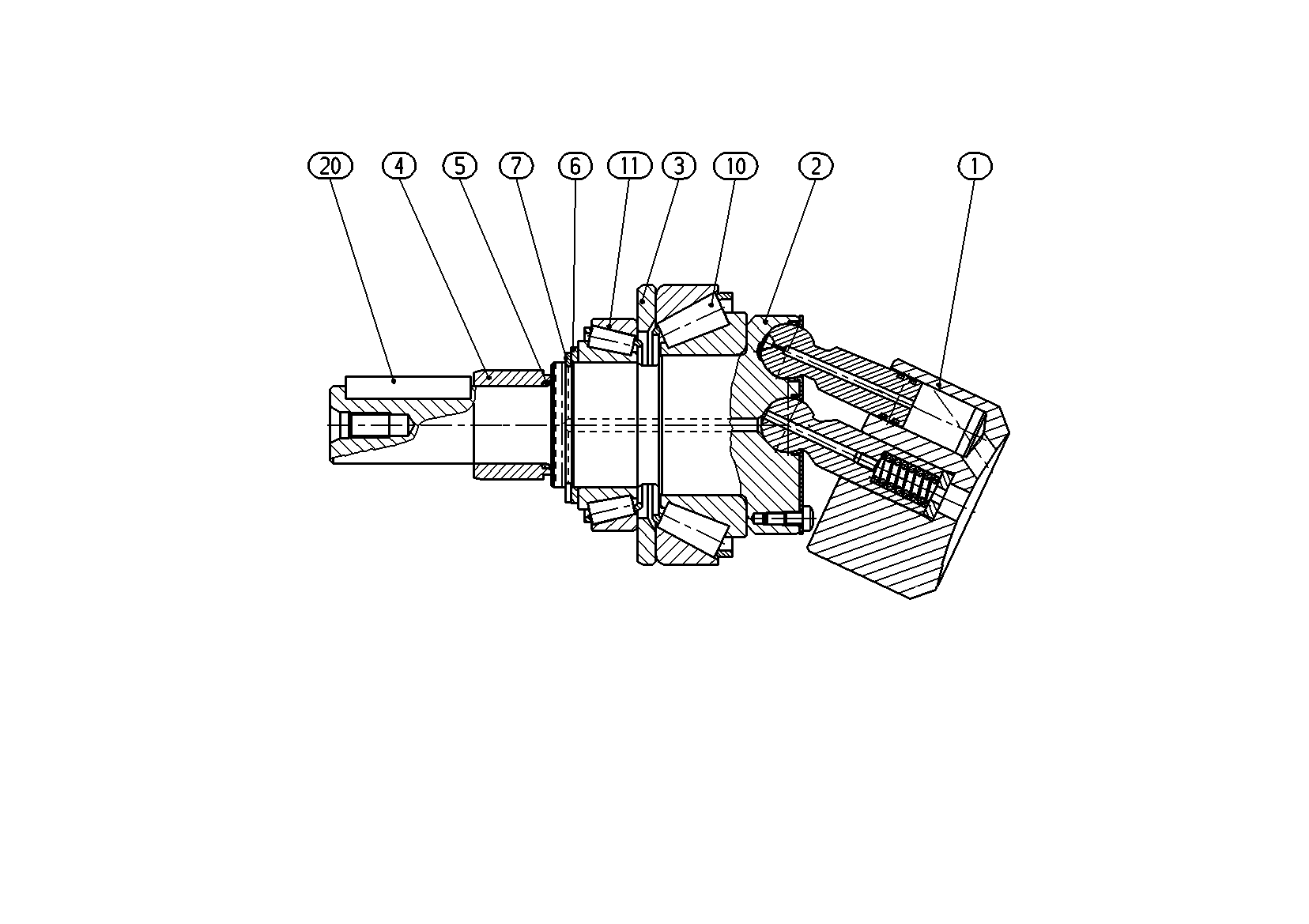

ROTARY GROUPR902063919
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902063930 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R902047290 | DRIVE SHAFT | 1 | ||
| R902063907 | SHIM RING | 1 | ||
| R902047279 | BUSHING | 1 | ||
| R909087649 | O-RING | 1 | ||
| R902063908 | SUPPORTING DISC | 1 | ||
| R902063909 | SUPPORTING DISC | 1 | ||
| R902063910 | SUPPORTING DISC | 1 | ||
| R902063911 | SUPPORTING DISC | 1 | ||
| R902063912 | SUPPORTING DISC | 1 | ||
| R902063913 | SUPPORTING DISC | 1 | ||
| R902063914 | SUPPORTING DISC | 1 | ||
| R902063915 | SUPPORTING DISC | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R909154685 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154686 | TAPERED-ROLLER BEARING | 1 | |
| R909083983 | PARALLEL KEY | 1 |
