Baugruppe

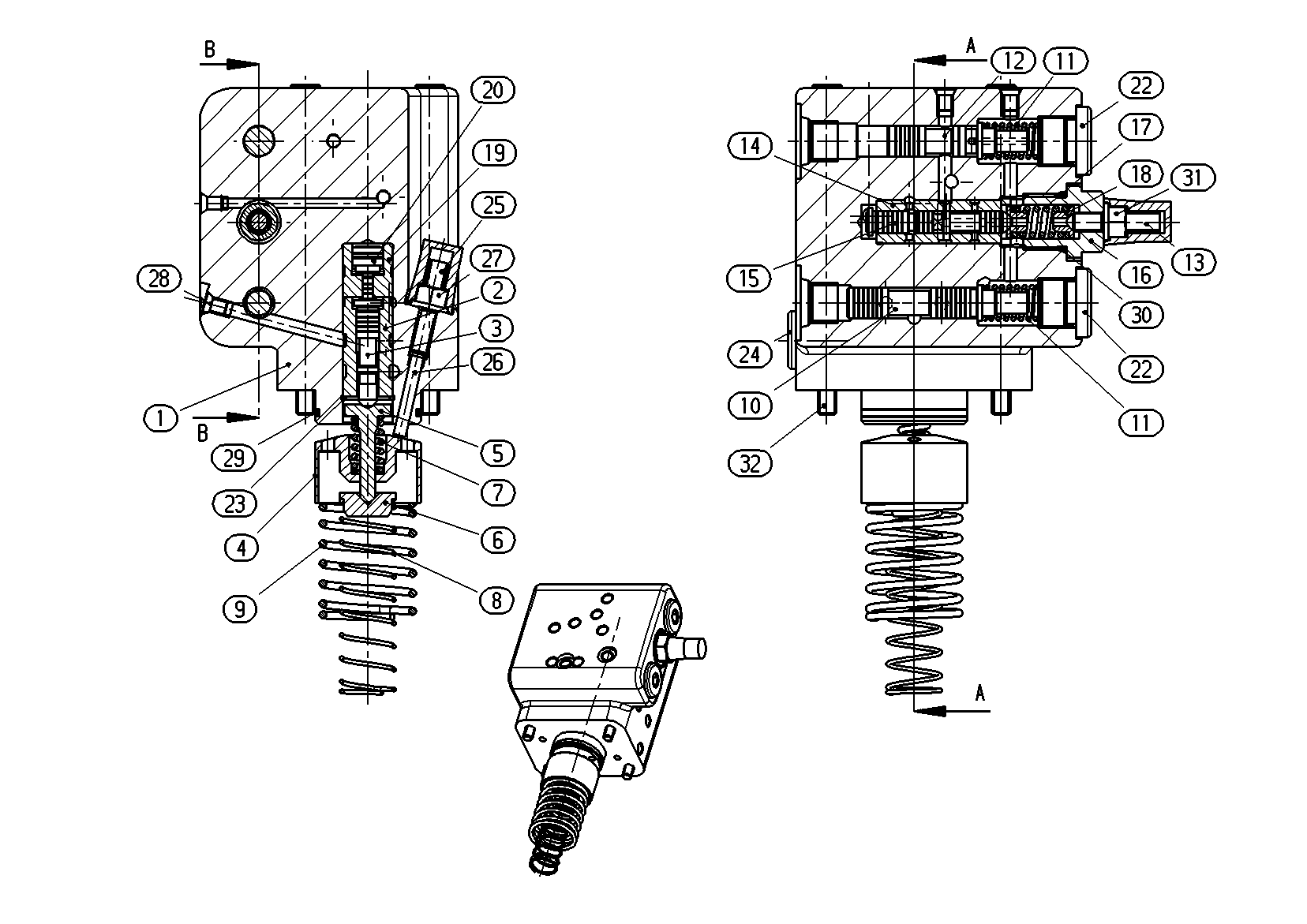

CONTROL PARTR902067564
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902063881 | CONTROL HOUSING | 1 | |
| R902065523 | CONTROL SLEEVE | 1 | ||
| R902065524 | CONTROL SLEEVE | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909436701 | COMPRESSION SPRING | 1 | ||
| 9 | R909651117 | COMPRESSION SPRING | 1 | |
| R902063673 | CONTROL PISTON | 1 | ||
| 11 | R902063640 | COMPRESSION SPRING | 2 | |
| R902065527 | CONTROL SLEEVE | 1 | ||
| 13 | R902052249 | SETSCREW | 1 | |
| R902063659 | CONTROL SLEEVE | 1 | ||
| R902063660 | CONTROL PISTON | 1 | ||
| R902063662 | SCREW PLUG | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R902063661 | SPRING DISK | 2 | ||
| R902065525 | BUSHING | 1 | ||
| R902065526 | PISTON | 1 | ||
| R909156864 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902601850 | SCREW PLUGD | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087166 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 11 | ||
| 29 | R909085560 | O-RINGD | 1 | |
| R909830860 | O-RING | 1 | ||
| R909157764 | SEALING NUT | 1 | ||
| R909083053 | SOCKET HEAD CAP SCREW | 4 |
