Baugruppe

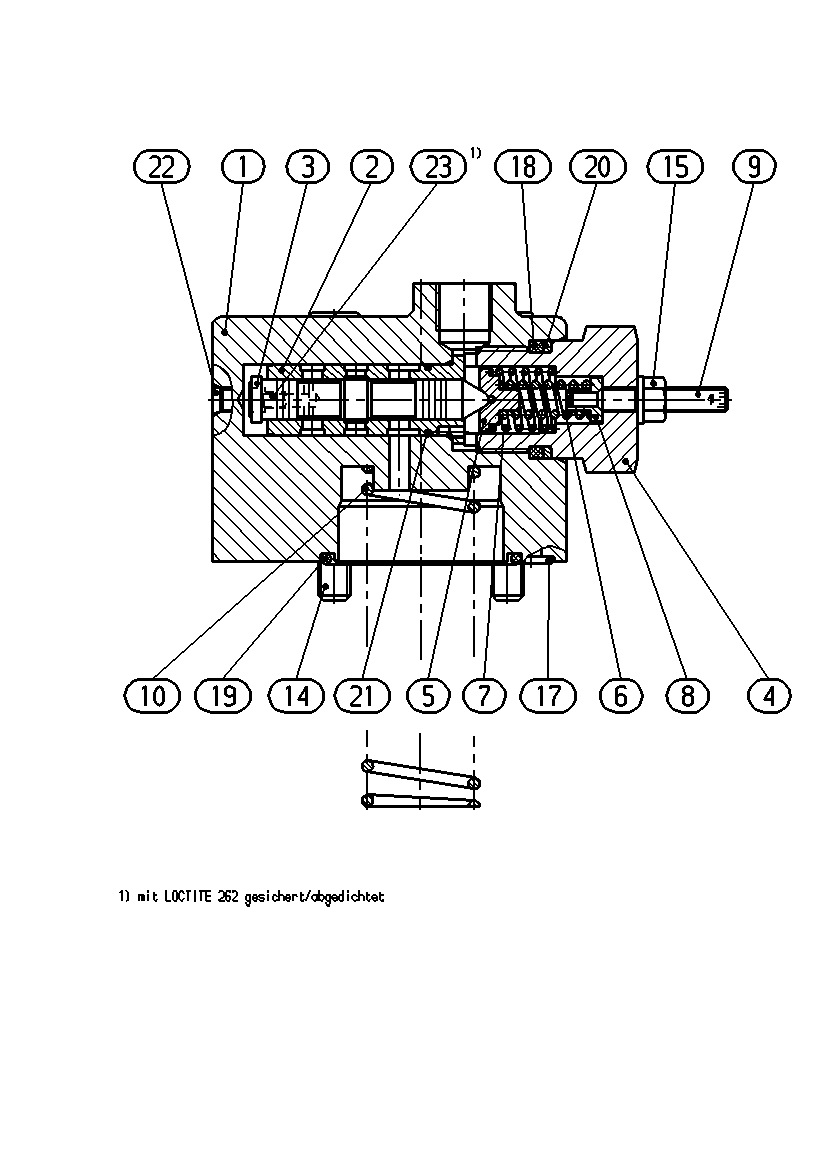

SEQUENCE VALVER902067897
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902115766 | HOUSING | 1 | ||
| R909444564 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| 4 | R909435552 | SCREW PLUG | 1 | |
| 5 | R909418698 | SPRING DISK | 1 | |
| R909432906 | COMPRESSION SPRING | 1 | ||
| 7 | R909410091 | COMPRESSION SPRING | 1 | |
| R902221507 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909426537 | COMPRESSION SPRING | 1 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152425 | SEALING NUT | 1 | ||
| 17 | R909086380 | O-RINGD | 2 | |
| R909083797 | O-RING | 1 | ||
| R909086334 | O-RING | 1 | ||
| R909087626 | BACKUP RINGD | 1 | ||
| R909156358 | R-RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909083488 | SETSCREW | 1 |
