Baugruppe

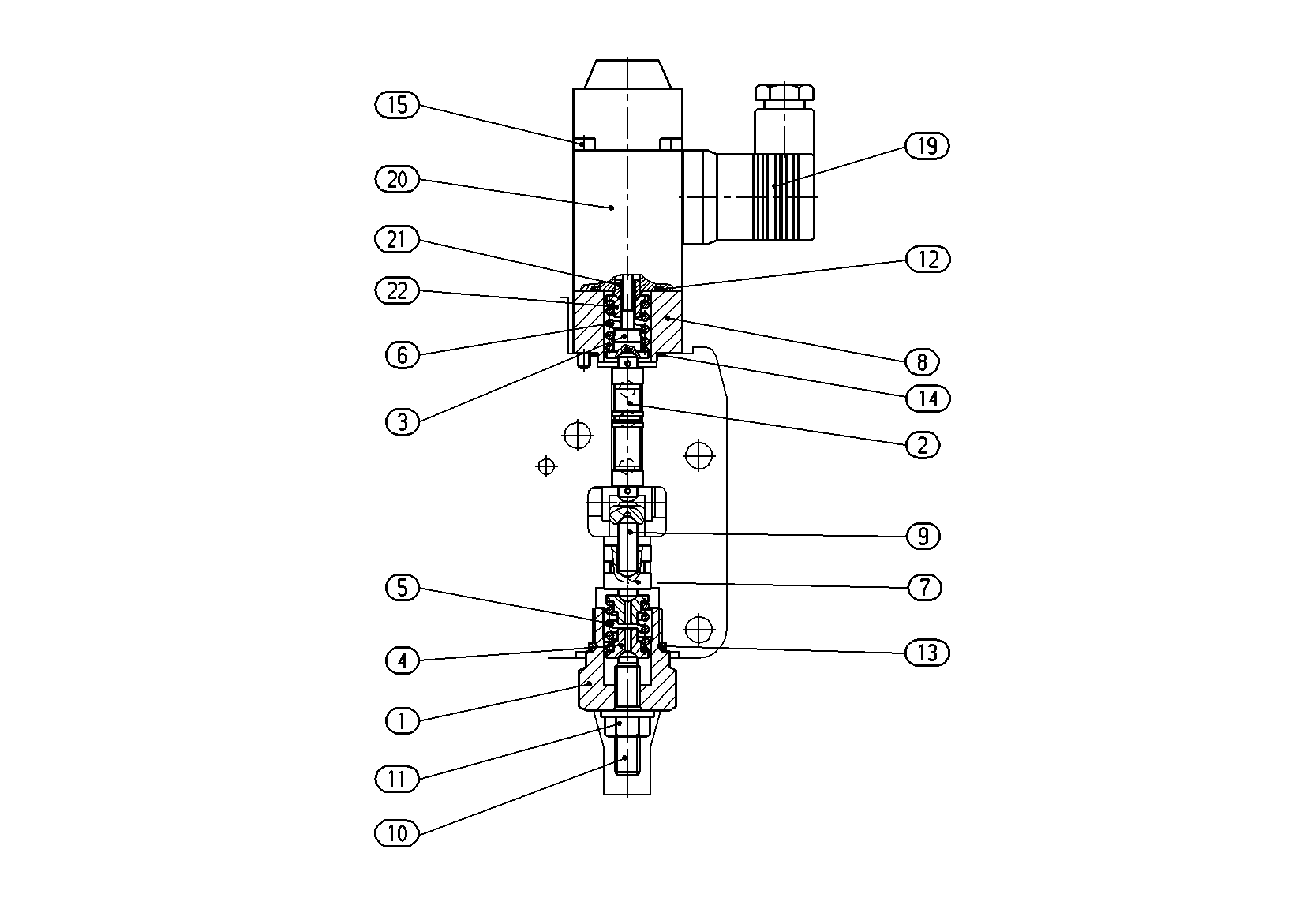

CONTROL ELEMENTR902070131
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909444161 | SCREW PLUG | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R909449617 | SPRING BOLT | 1 | ||
| R909436991 | SPRING BOLT | 2 | ||
| R902012047 | COMPRESSION SPRING | 2 | ||
| R902025067 | PISTON | 1 | ||
| R902030178 | INTERMEDIATE PIECE | 1 | ||
| R902030195 | BOLT | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083737 | O-RINGD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909157700 | SOCKET HEAD CAP SCREW | 2 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902030389 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R909449619 | SPRING WASHER | 1 | ||
| R909449618 | SPRING DISK | 1 |
