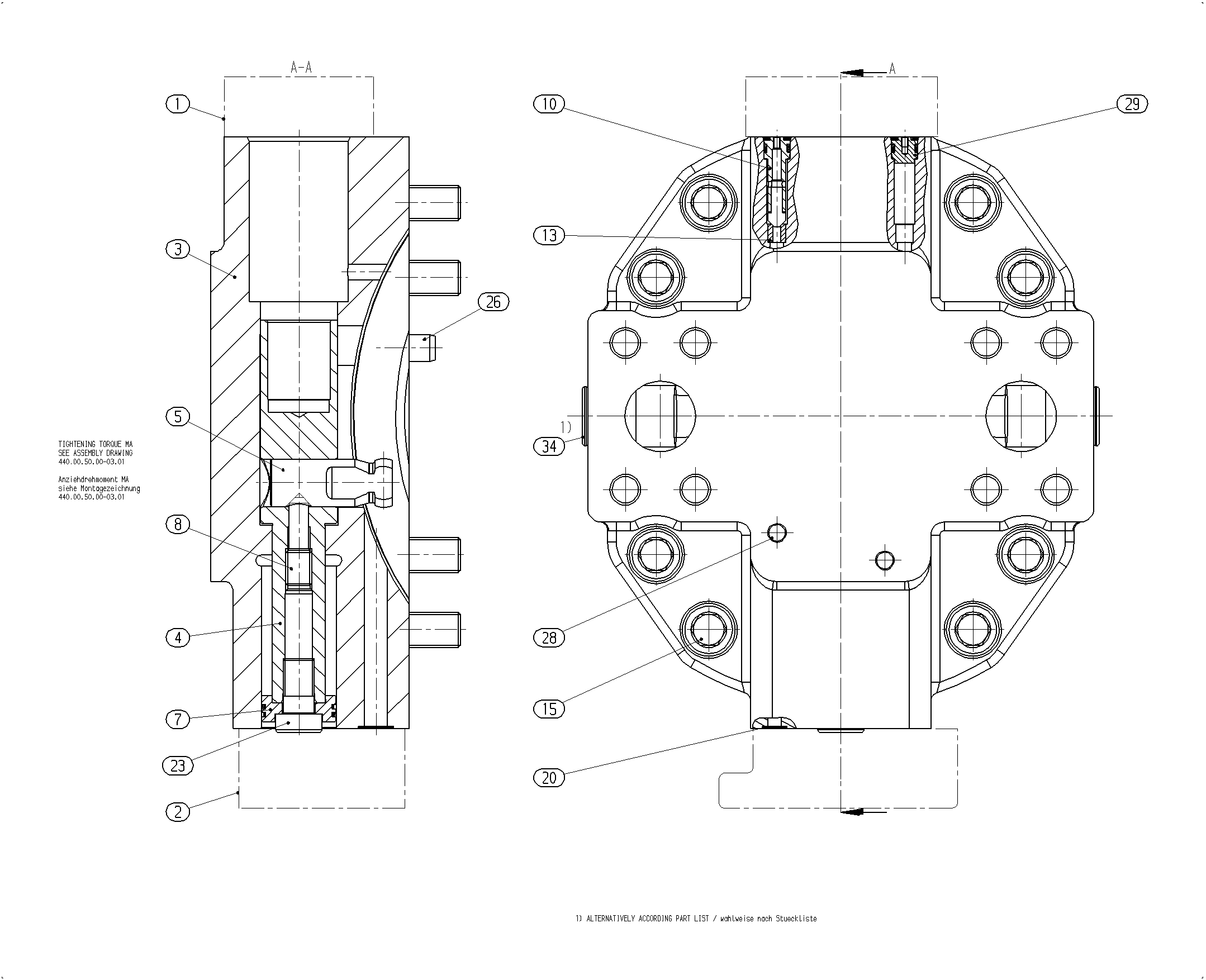

Baugruppe
CONTROLR902070546
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909604673 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909603763 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902130722 | COVER PLATE | 1 | ||
| R909921435 | POSITIONING PISTON | 1 | ||
| R909424057 | POSITIONING STUD | 1 | ||
| R902102907 | PISTON | 1 | ||
| R909445016 | SETSCREW | 1 | ||
| R902096781 | CHECK VALVE | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085577 | O-RINGD | 6 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902110208 | PLUG | 1 | ||
| R902601710 | SCREW PLUG | 2 |
