Baugruppe

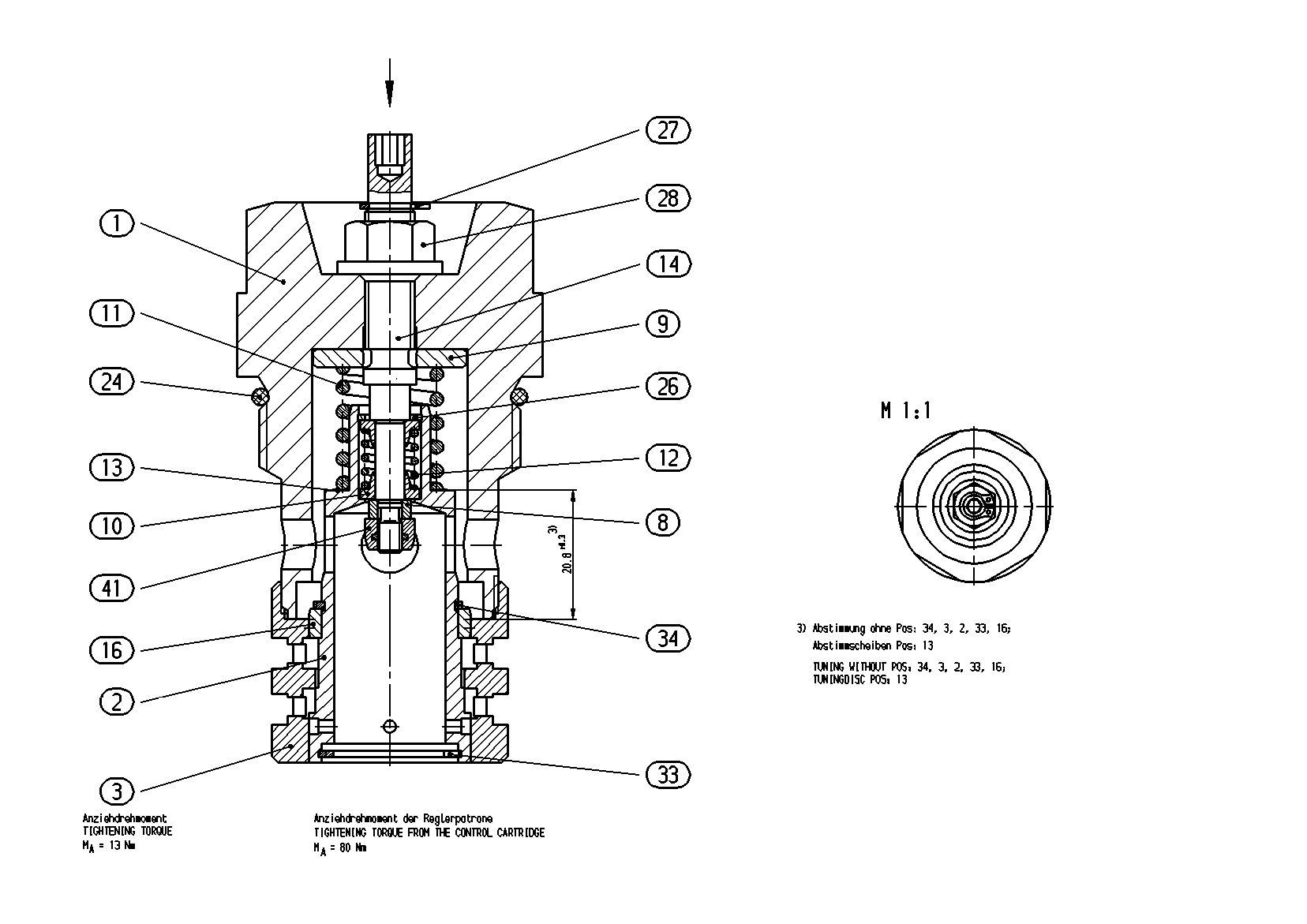

CONTROL CARTRIDGER902071529
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902071613 | CONTROL SCREW | 1 | ||
| R909922154 | DIFFERENTIAL PISTON | 1 | ||
| R909922155 | CONTROLLER PIPE | 1 | ||
| R909421327 | WASHER | 1 | ||
| R902081398 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| R902071509 | COMPRESSION SPRING | 1 | ||
| R909412585 | COMPRESSION SPRING | 1 | ||
| R909400553 | WASHER | 3 | ||
| R902071632 | SETSCREW | 1 | ||
| R909445441 | RING | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909153761 | RETAINING RING | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083386 | V-RING | 1 | ||
| R902602197 | SNAP RING | 1 | ||
| R909157287 | HEXAGON NUT | 1 |
