Baugruppe

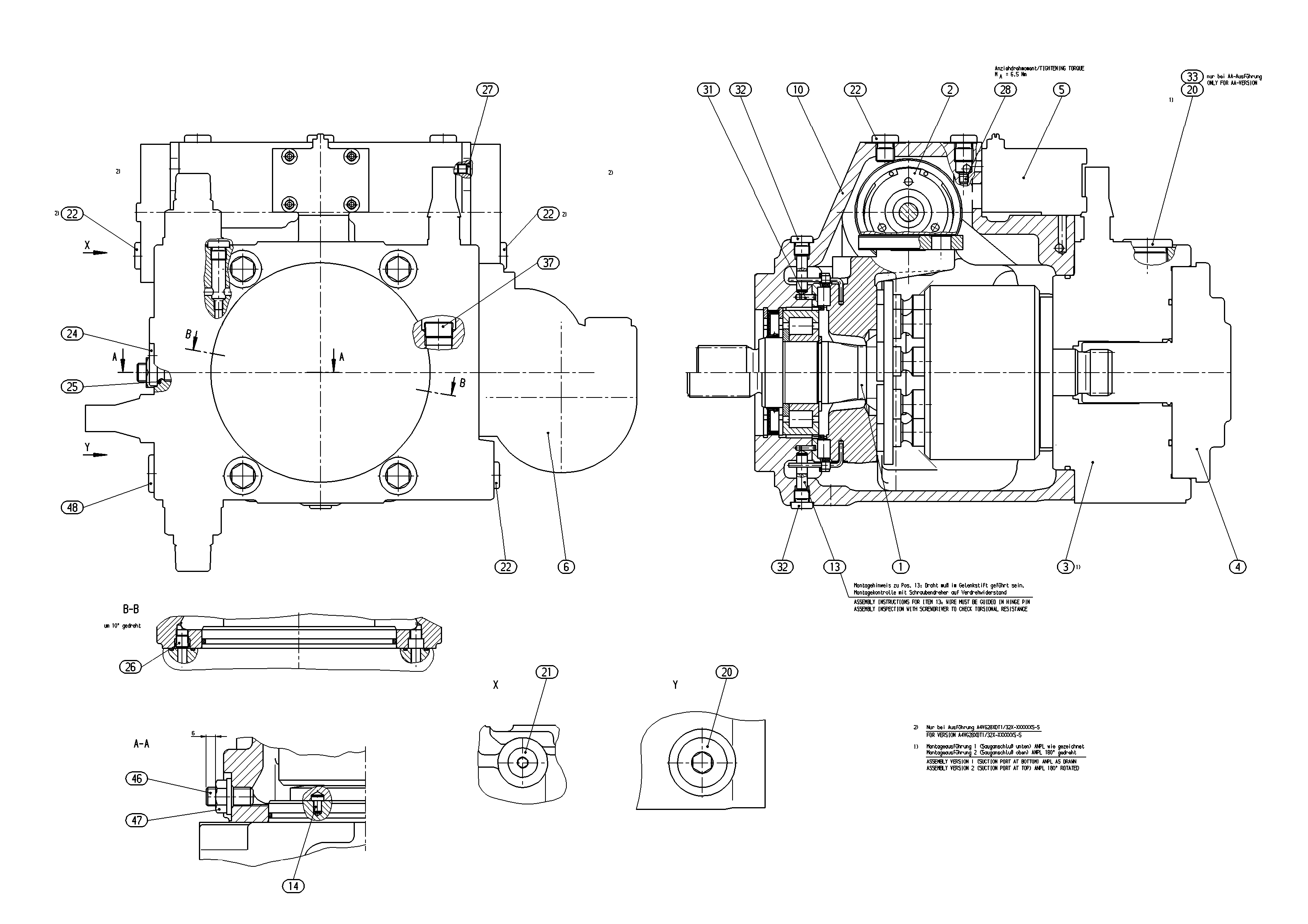

AXIAL-PISTON PUMPR902073315
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902199722 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902009059 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902258229 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606659 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902027514 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902278256 | MOUNTABLE FILTER Stückliste der Baugruppe →L | 1 | ||
| R902003862 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909087913 | SCREW PLUGD | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 98 | R902095648 | SEAL KIT | 1 |
