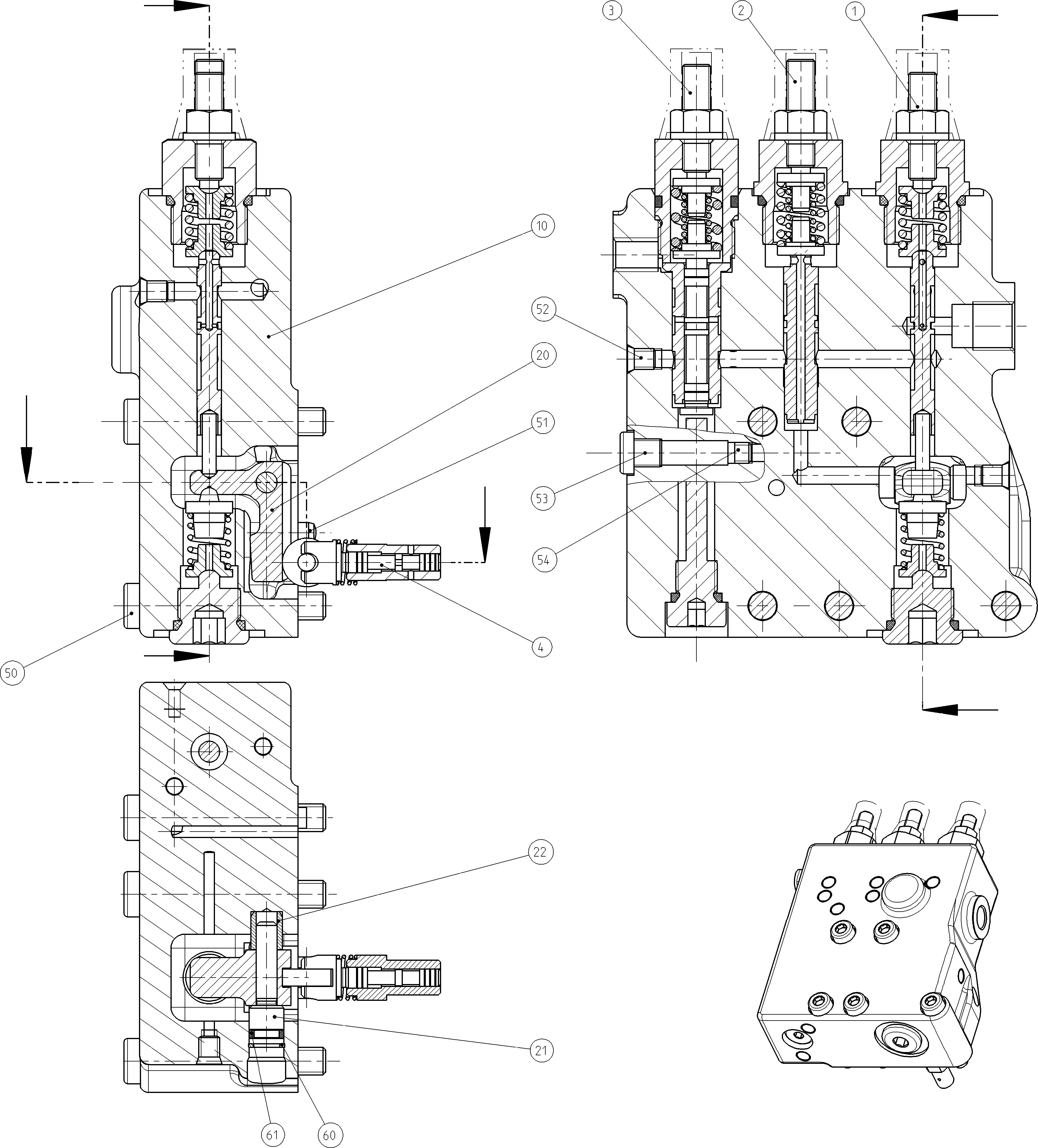

Baugruppe
REGULATORR902073338
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902073324 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902048603 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909606784 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902087579 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902071747 | CONTROL HOUSING | 1 | ||
| R902122300 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909156490 | NOZZLE | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002476 | SEAL KIT | 1 |
