Baugruppe

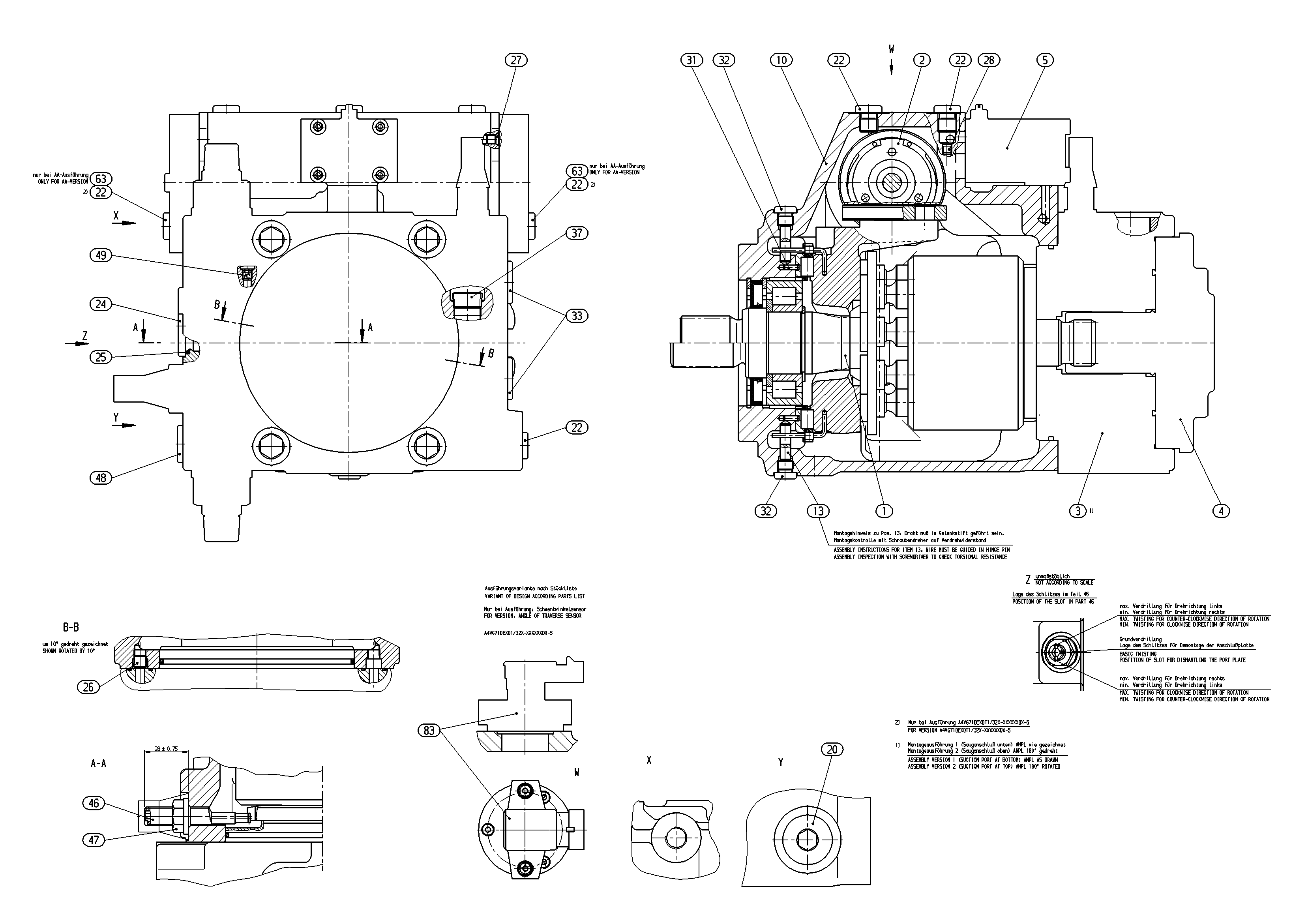

AXIAL-PISTON PUMPR902074302
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902087311 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902021430 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909609869 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606657 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902085588 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902071347 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902190711 | THROTTLE VALVE Stückliste der Baugruppe →L | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909087913 | SCREW PLUG | 1 | ||
| R909436131 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R902075918 | SWIVEL ANGLE SENSOR Stückliste der Baugruppe →L | 1 |
