Baugruppe

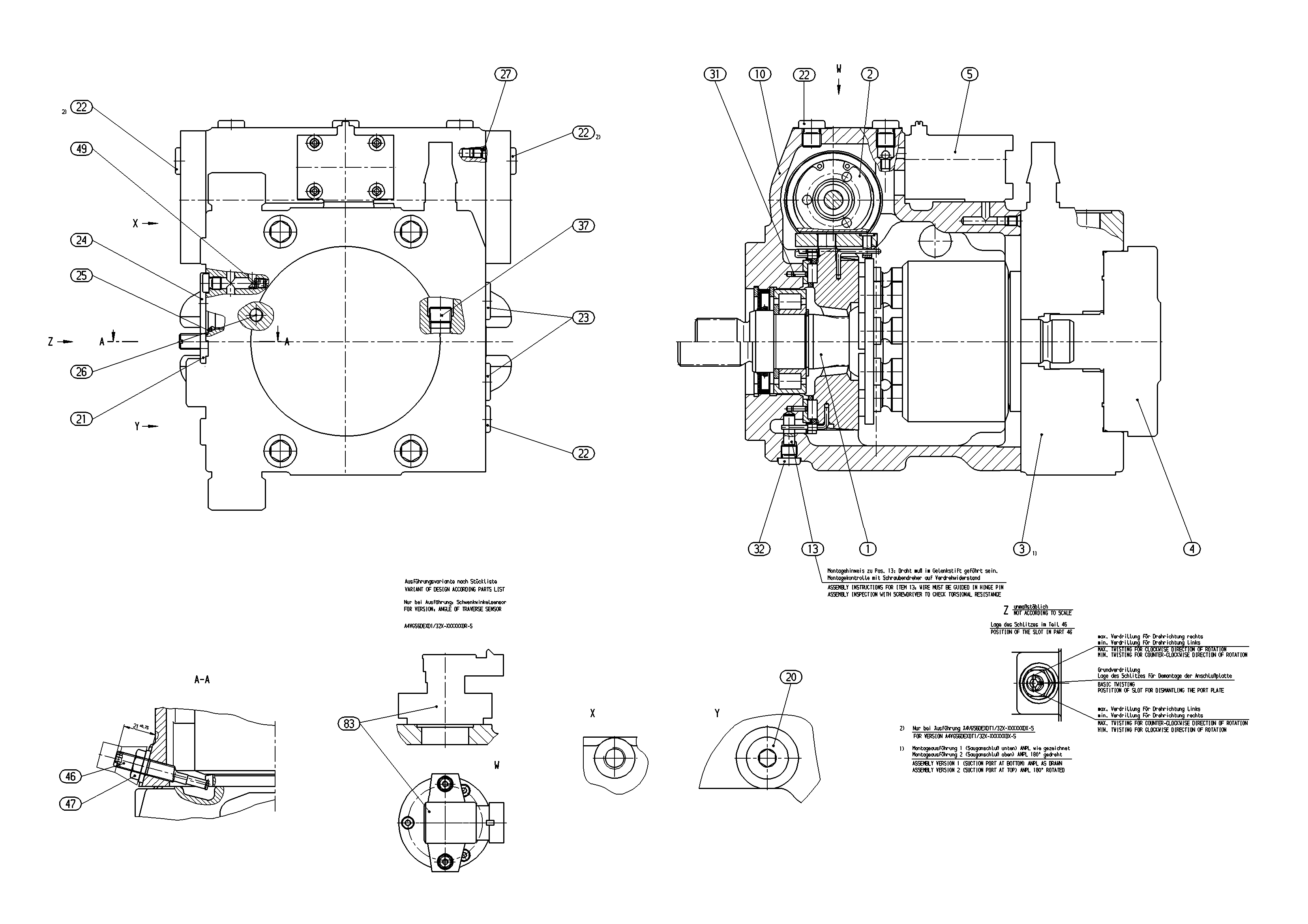

AXIAL-PISTON PUMPR902074402
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902084773 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902071438 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909609337 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606382 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902085588 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902071429 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| 28 | R902190711 | THROTTLE VALVE Stückliste der Baugruppe →L | 2 | |
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R902076591 | SWIVEL ANGLE SENSOR Stückliste der Baugruppe →L | 1 |
