Baugruppe

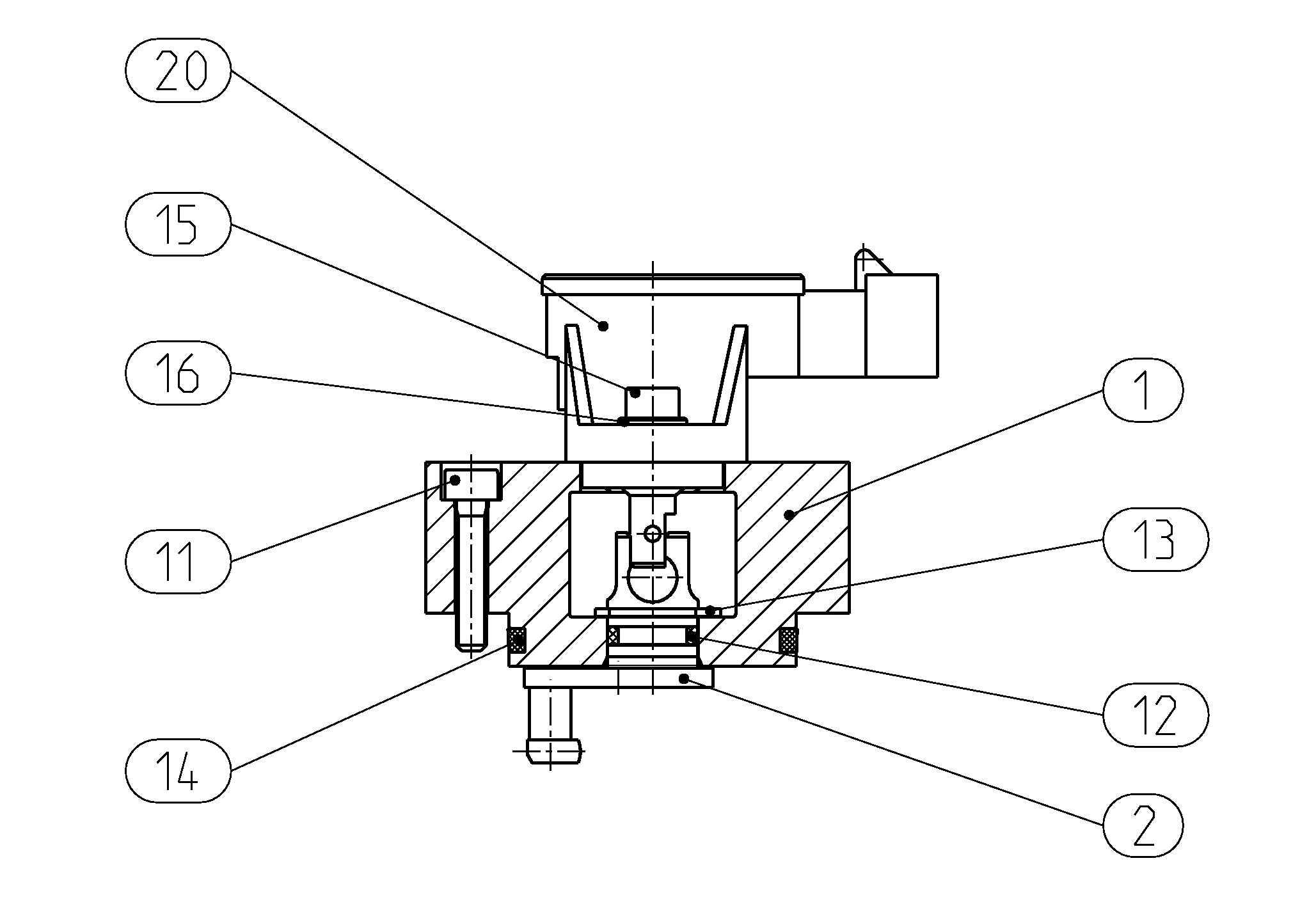

SWIVEL ANGLE SENSORR902076593
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902084598 | SENSOR HOUSING | 1 | ||
| R902236372 | SENSOR SHAFT | 1 | ||
| R902215517 | SOCKET HEAD CAP SCREW | 3 | ||
| R909083728 | O-RING | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909086730 | O-RING | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010109 | WASHER | 2 | ||
| R902601927 | ROT. ANGLE SENSOR | 1 |
