Baugruppe

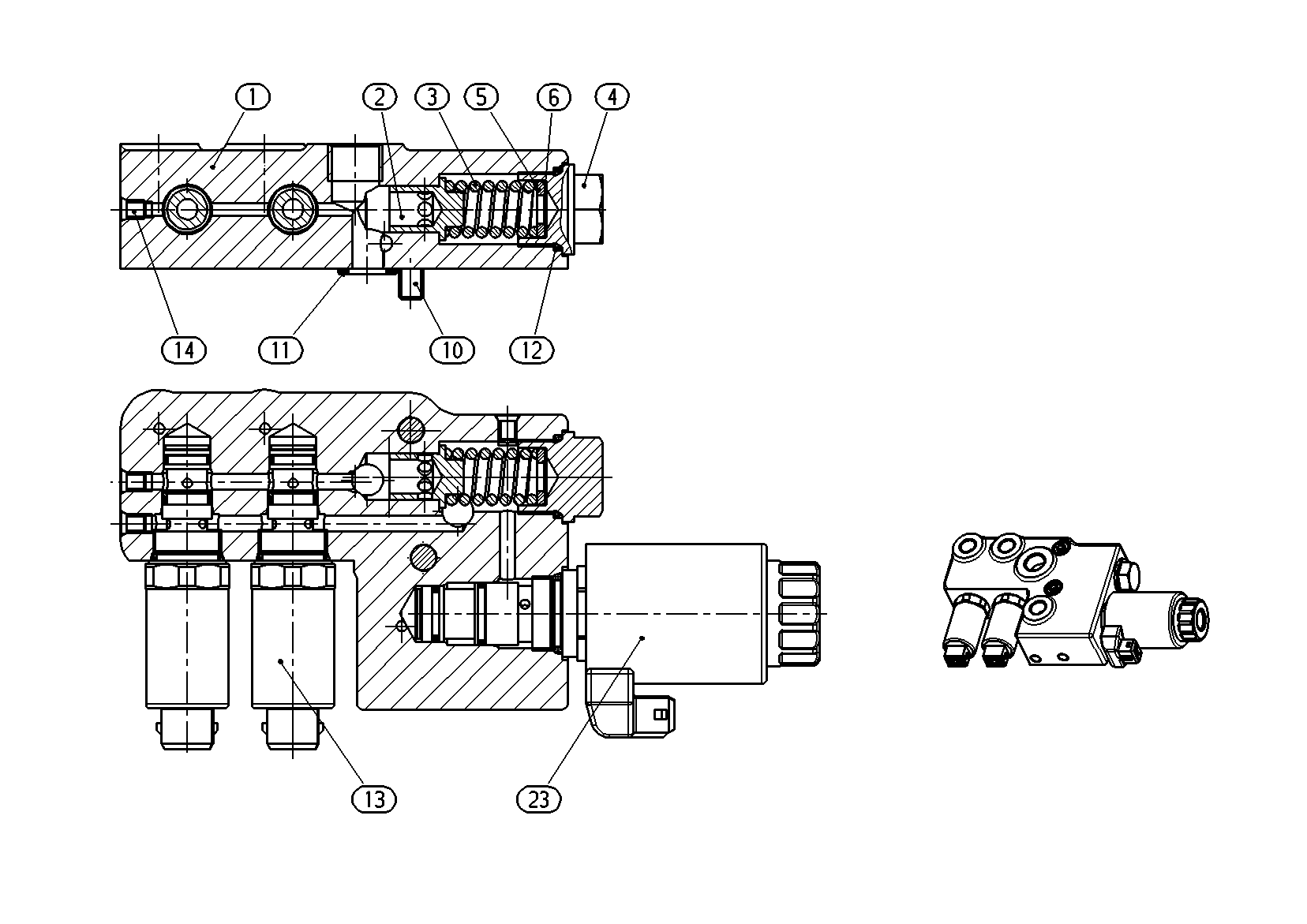

CONNECTION PLATER902077458
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902077239 | CONNECTION PLATE | 1 | ||
| R909426804 | VALVE SPOOL | 1 | ||
| R902030583 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R909080511 | WASHER | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083753 | O-RING | 2 | ||
| R909083760 | O-RING | 1 | ||
| R900727801 | PRESSURE REDUCING VALVE | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R901297359 | PRESSURE REDUCING VALVE | 1 |
