Baugruppe

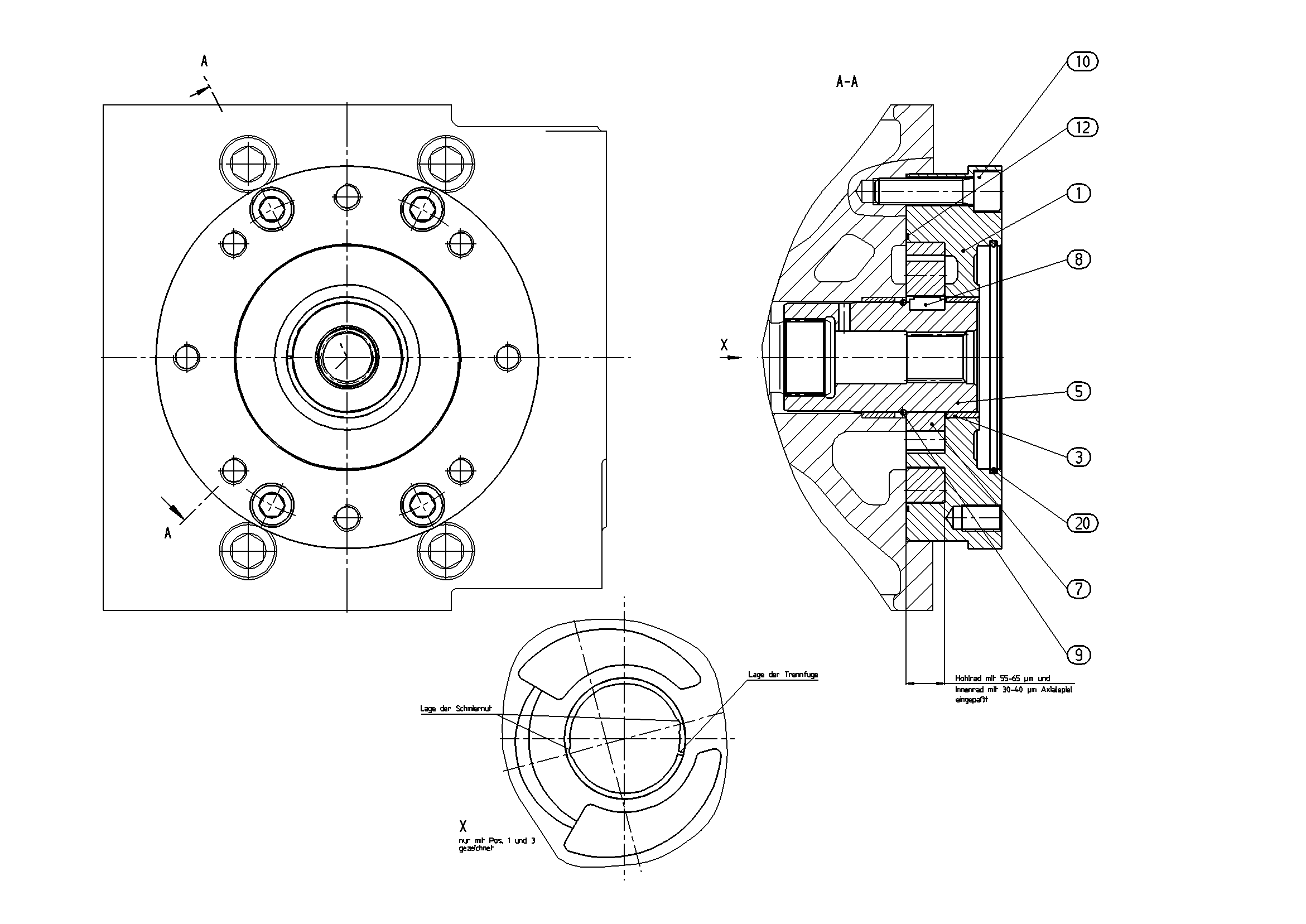

INTERNAL GEAR PUMPR902078078
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902071481 | INTERMEDIATE FLANGE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R902032459 | THROUGH DRIVE SHAFT | 1 | ||
| R902006264 | WHEEL SET | 1 | ||
| R902025642 | PARALLEL KEY | 1 | ||
| R909154019 | SNAP RING | 1 | ||
| R909086611 | SOCKET HEAD CAP SCREW | 4 | ||
| R913026809 | KANTSEALD | 1 | ||
| R913032365 | O-RINGD | 1 |
