Baugruppe

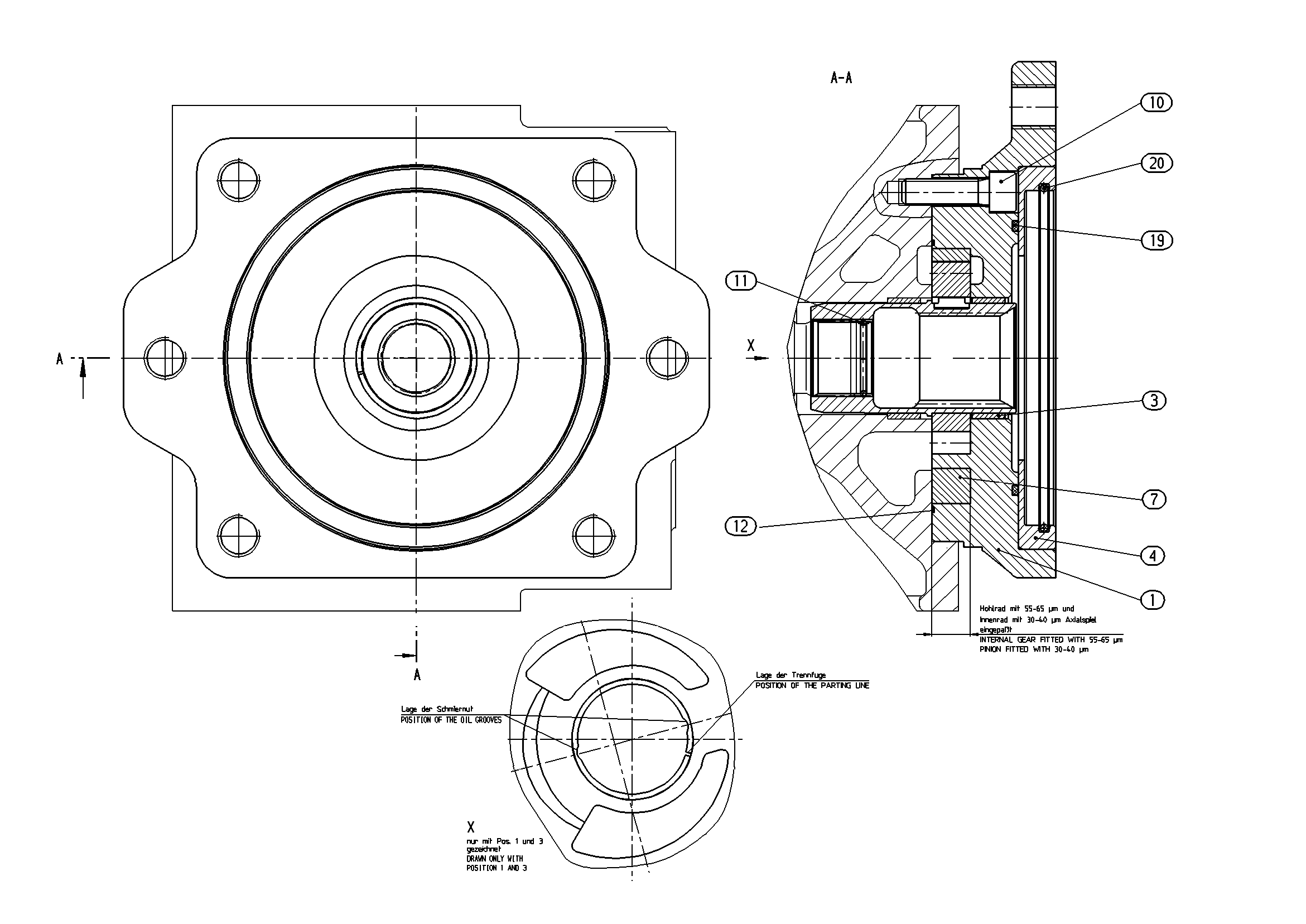

INTERNAL GEAR PUMPR902078093
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902071487 | INTERMEDIATE FLANGE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R909439740 | INTERMEDIATE RING | 1 | ||
| 5 | R902064624 | THROUGH DRIVE SHAFT | 1 | |
| R902006265 | WHEEL SET | 1 | ||
| 8 | R902049809 | PARALLEL KEY | 1 | |
| R909086573 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601476 | SNAP RING | 1 | ||
| R913026809 | KANTSEALD | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R913044948 | O-RINGD | 1 |
