Baugruppe

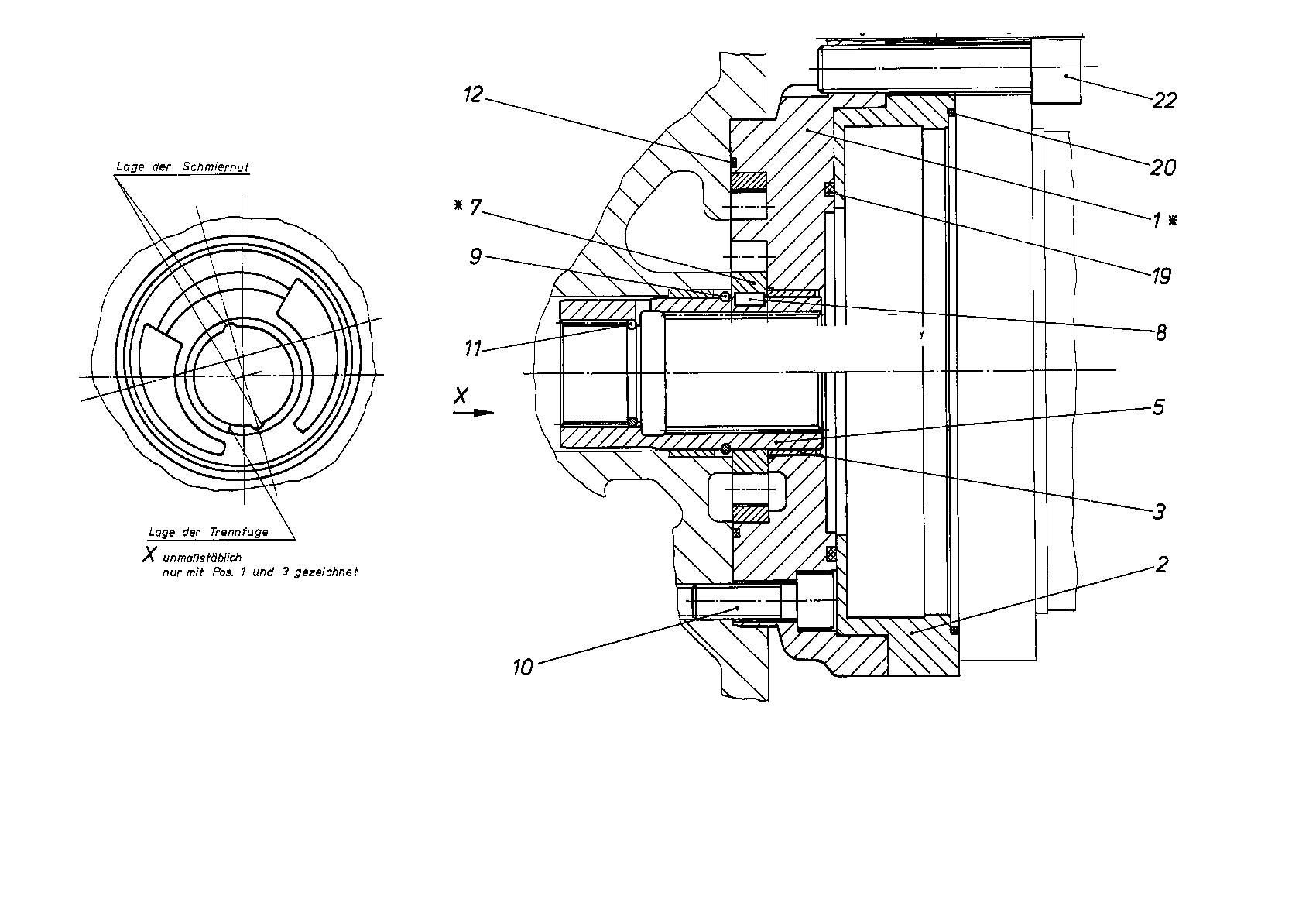

INTERNAL GEAR PUMPR902078124
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902078005 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R909443489 | INTERMEDIATE FLANGE | 1 | |
| 3 | R902260553 | BUSHING | 1 | |
| 5 | R902104669 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006261 | WHEEL SET | 1 | |
| 8 | R902105557 | PARALLEL KEY | 1 | |
| 9 | R909154019 | SNAP RING | 1 | |
| R909083089 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R902601476 | SNAP RING | 1 | |
| 12 | R913026809 | KANTSEALD | 1 | |
| 19 | R909152647 | O-RINGD | 1 | |
| 20 | R909086482 | O-RINGD | 1 | |
| 22 | R909083137 | SOCKET HEAD CAP SCREW | 4 |
