Baugruppe

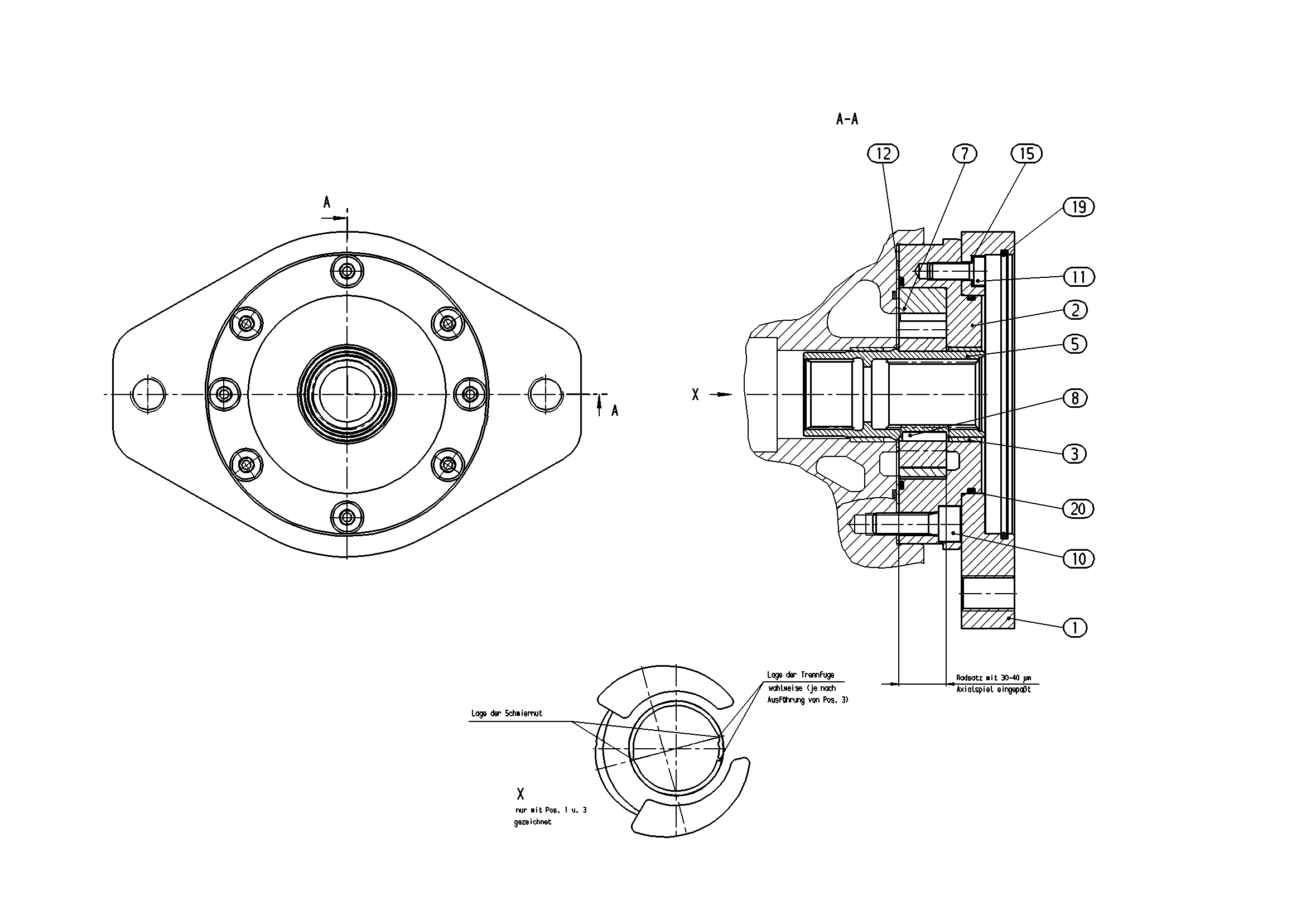

INTERNAL GEAR PUMPR902079010
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909651147 | INTERMEDIATE FLANGE | 1 | ||
| R902077947 | PUMP COVER | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R902258074 | THROUGH DRIVE SHAFT | 1 | ||
| R902006260 | WHEEL SET | 1 | ||
| R902244316 | PARALLEL KEY | 1 | ||
| 9 | R909156930 | SNAP RING | 1 | |
| R909083061 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083189 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086679 | O-RINGD | 1 | ||
| R909152493 | SEAL RING | 8 | ||
| — | O-RING | 1 | ||
| R909085360 | O-RINGD | 1 |
