Baugruppe

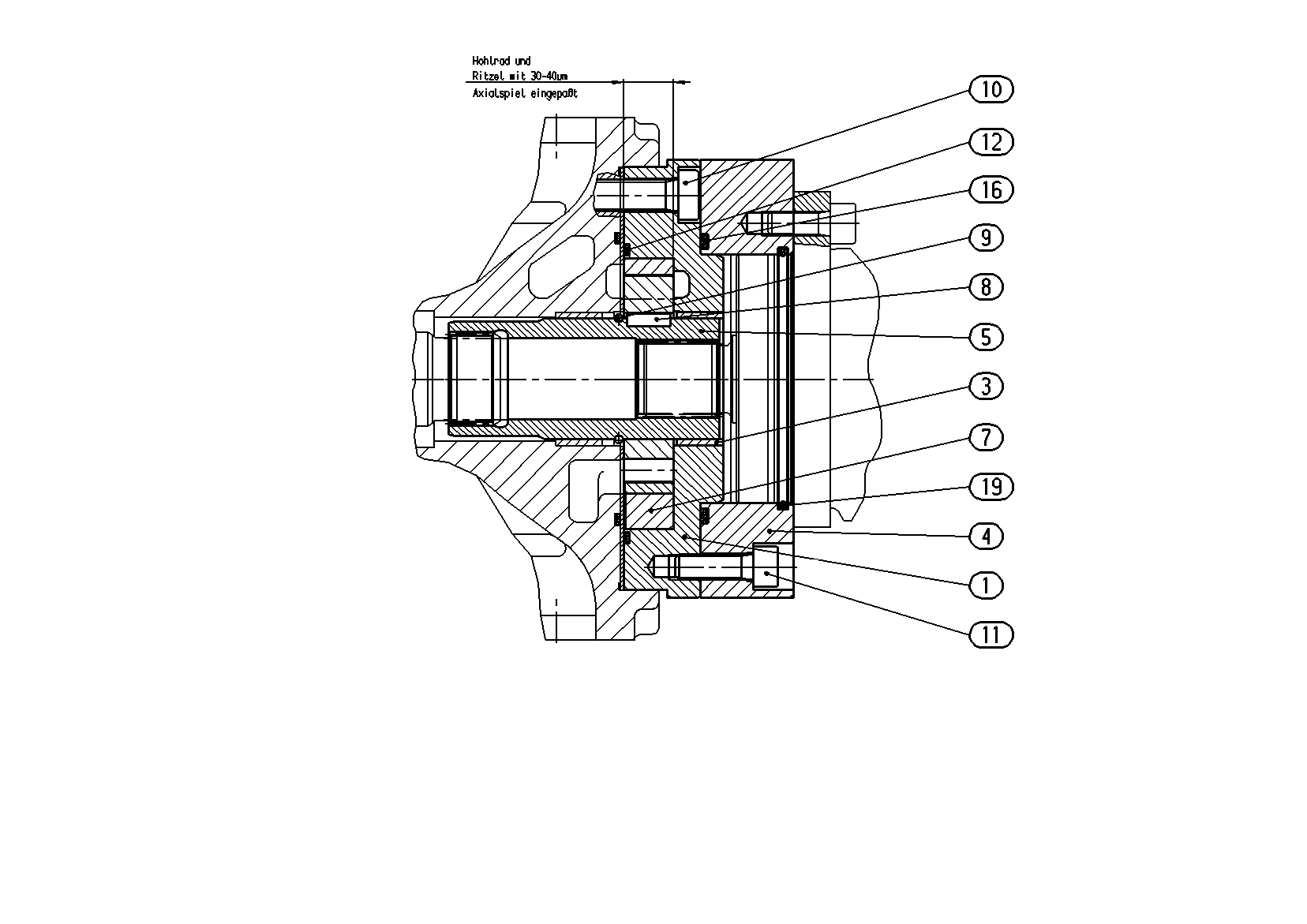

INTERNAL GEAR PUMPR902079033
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902077951 | INTERMEDIATE FLANGE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R902017066 | INTERMEDIATE FLANGE | 1 | ||
| 5 | R902017064 | THROUGH DRIVE SHAFT | 1 | |
| R902006258 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083198 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083038 | SOCKET HEAD CAP SCREW | 4 | |
| R909086679 | O-RINGD | 1 | ||
| R909156280 | O-RINGD | 1 | ||
| R909085360 | O-RINGD | 1 |
