Baugruppe

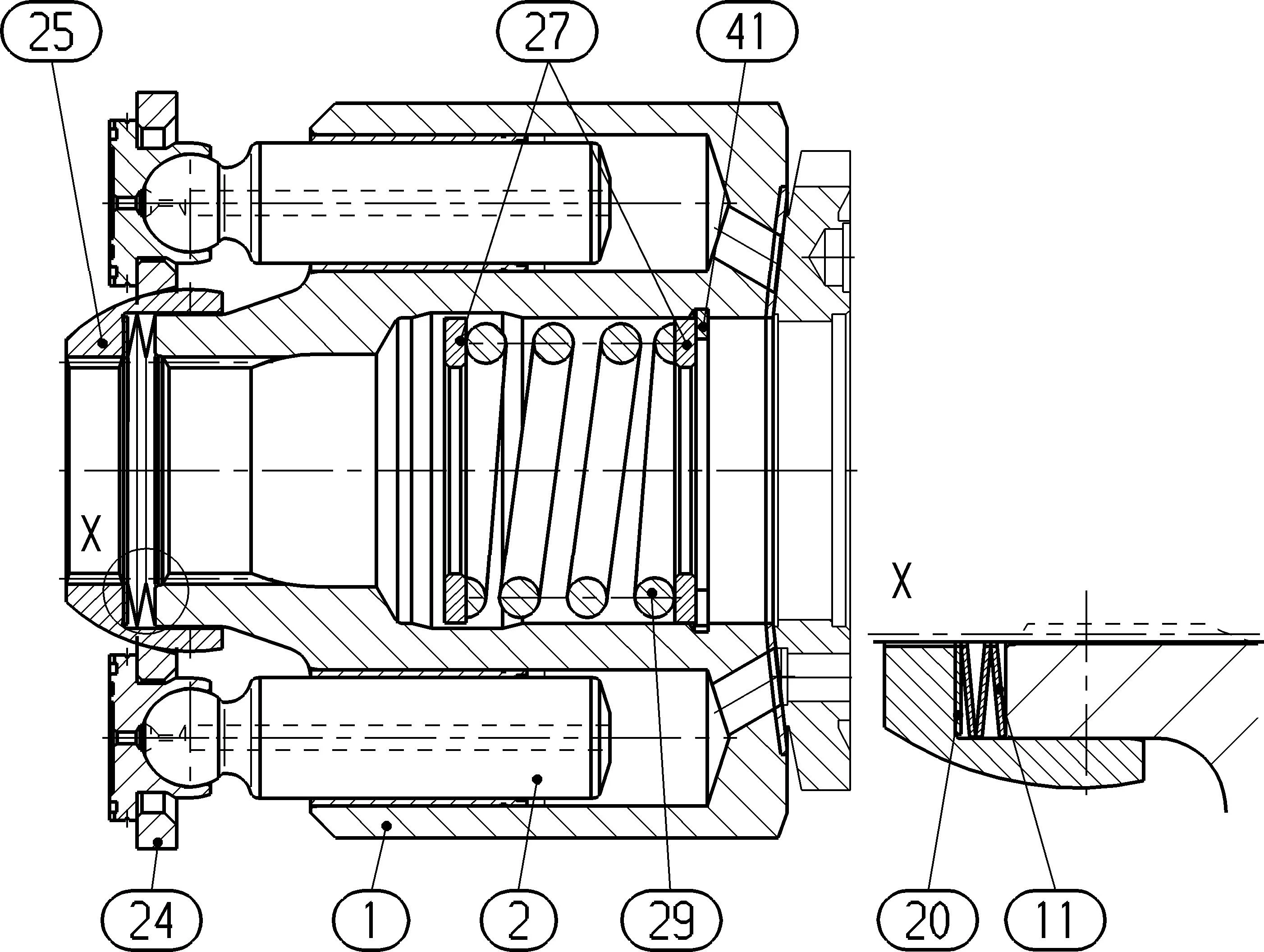

ROTARY GROUPR902079268
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902262308 | CYLINDER | 1 | ||
| R902376157 | PISTON PAD | 9 | ||
| 11 | R902192956 | CUP-SPRING STACK | 1 | |
| R909432991 | SHIM RING | 1 | ||
| R909432992 | SHIM RING | 1 | ||
| R909432993 | SHIM RING | 1 | ||
| R909432994 | SHIM RING | 1 | ||
| R902205451 | RETAINING PLATE | 1 | ||
| R902152624 | RETAINING BALL | 1 | ||
| R909449683 | WASHER | 2 | ||
| R909436102 | COMPRESSION SPRING | 1 | ||
| 41 | R909831182 | RETAINING RING | 1 |
