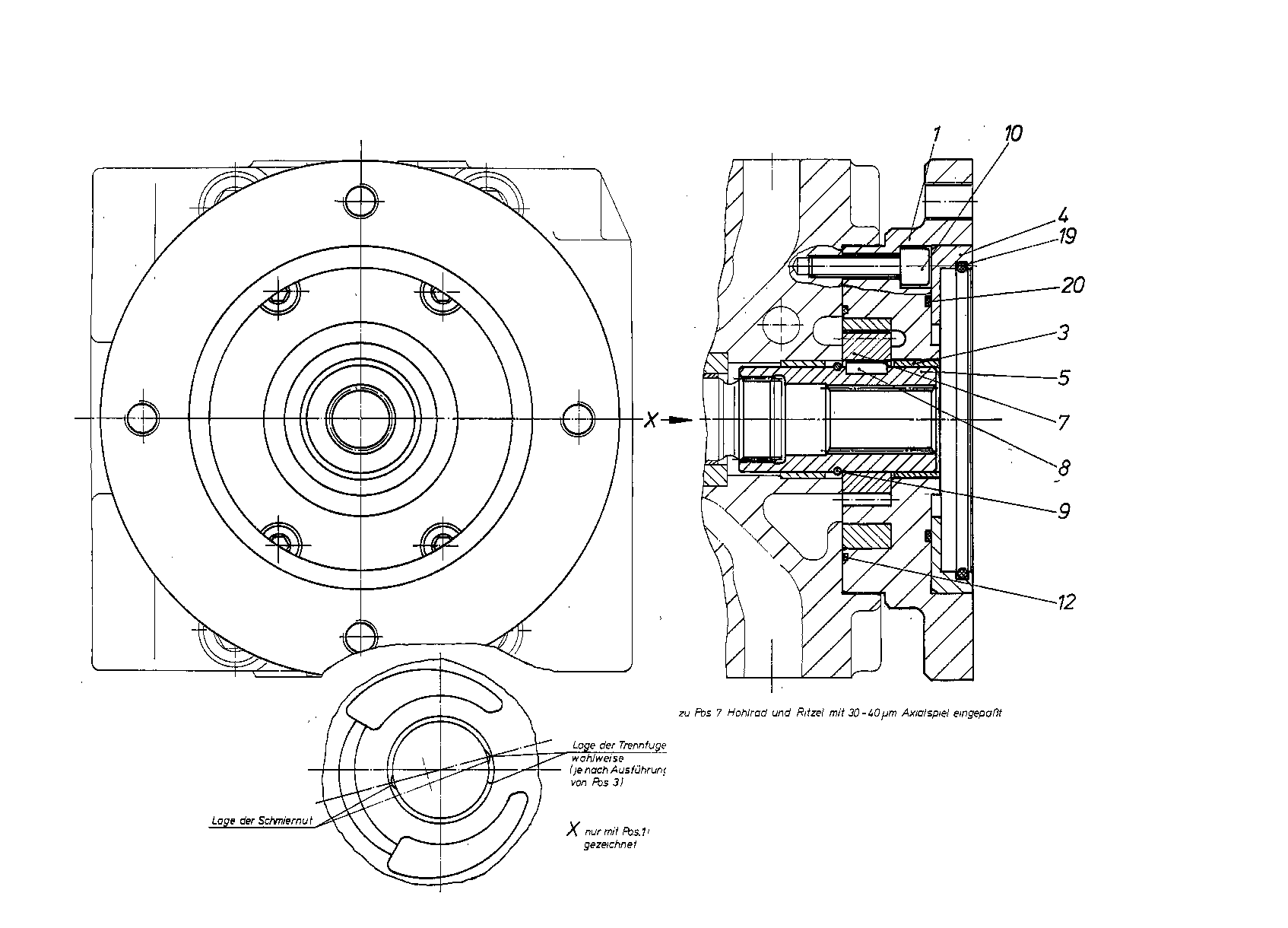

Baugruppe
INTERNAL GEAR PUMPR902079443
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902079382 | INTERMEDIATE FLANGE | 1 | |
| 3 | R909449135 | BUSHING | 1 | |
| 4 | R909444103 | INTERMEDIATE RING | 1 | |
| 5 | R902013255 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006256 | WHEEL SET | 1 | |
| 8 | R902025649 | PARALLEL KEY | 1 | |
| 9 | R909152046 | SNAP RING | 1 | |
| R909087242 | SOCKET HEAD CAP SCREW | 4 | ||
| — | KANTSEALD | 1 | ||
| 19 | — | O-RINGD | 1 | |
| — | BURL SEAL RINGD | 1 |
