Baugruppe

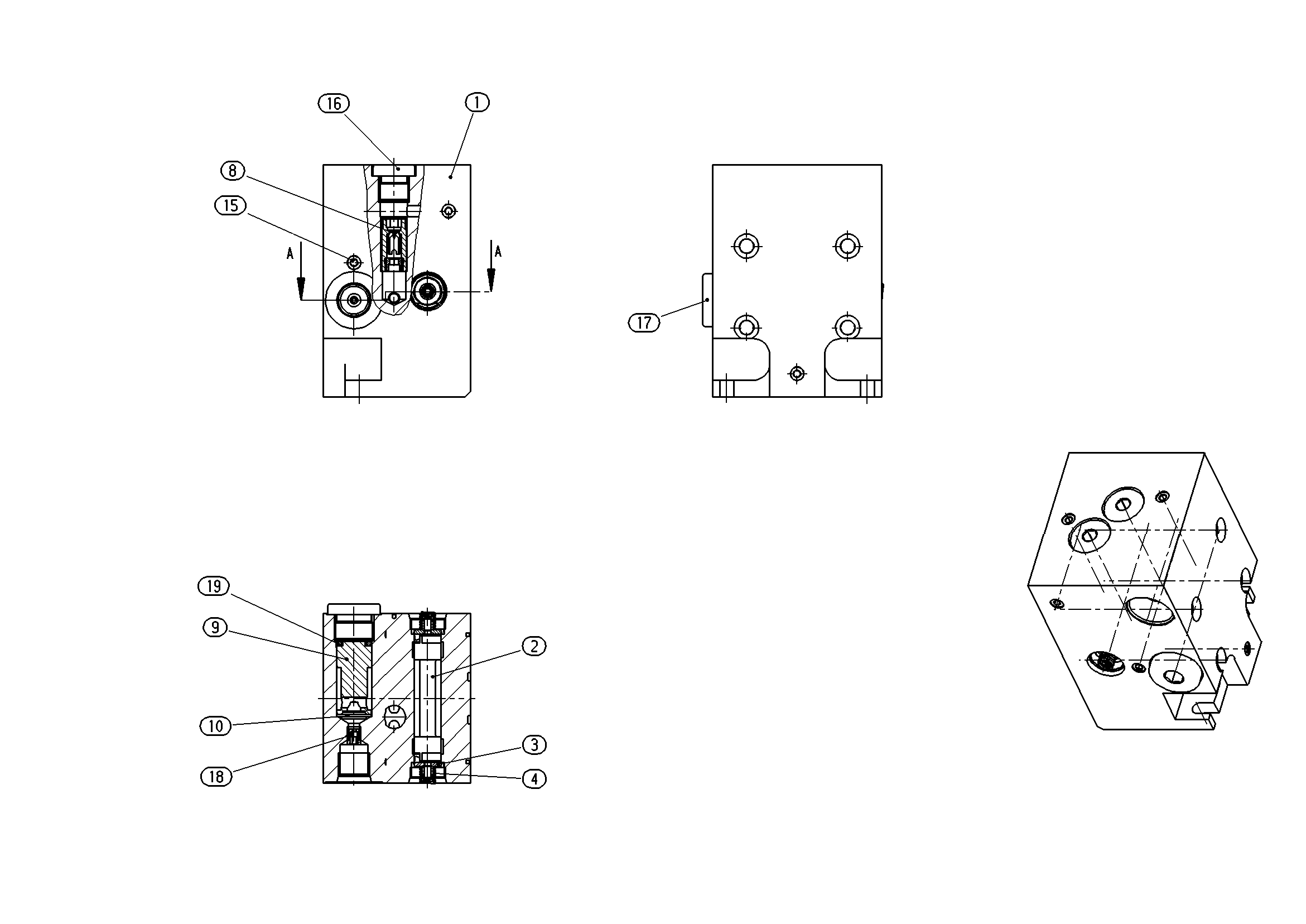

VALVE HOUSINGR902083859
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902081043 | HOUSING | 1 | ||
| R902034730 | CONTROL PISTON | 1 | ||
| R902236432 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909609404 | THROTTLE VALVE Stückliste der Baugruppe →L | 2 | ||
| R902037865 | SPACER | 1 | ||
| R909830096 | FILTER DISC | 1 | ||
| R902600705 | PLUG | 13 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909086765 | O-RING | 1 |
