Baugruppe

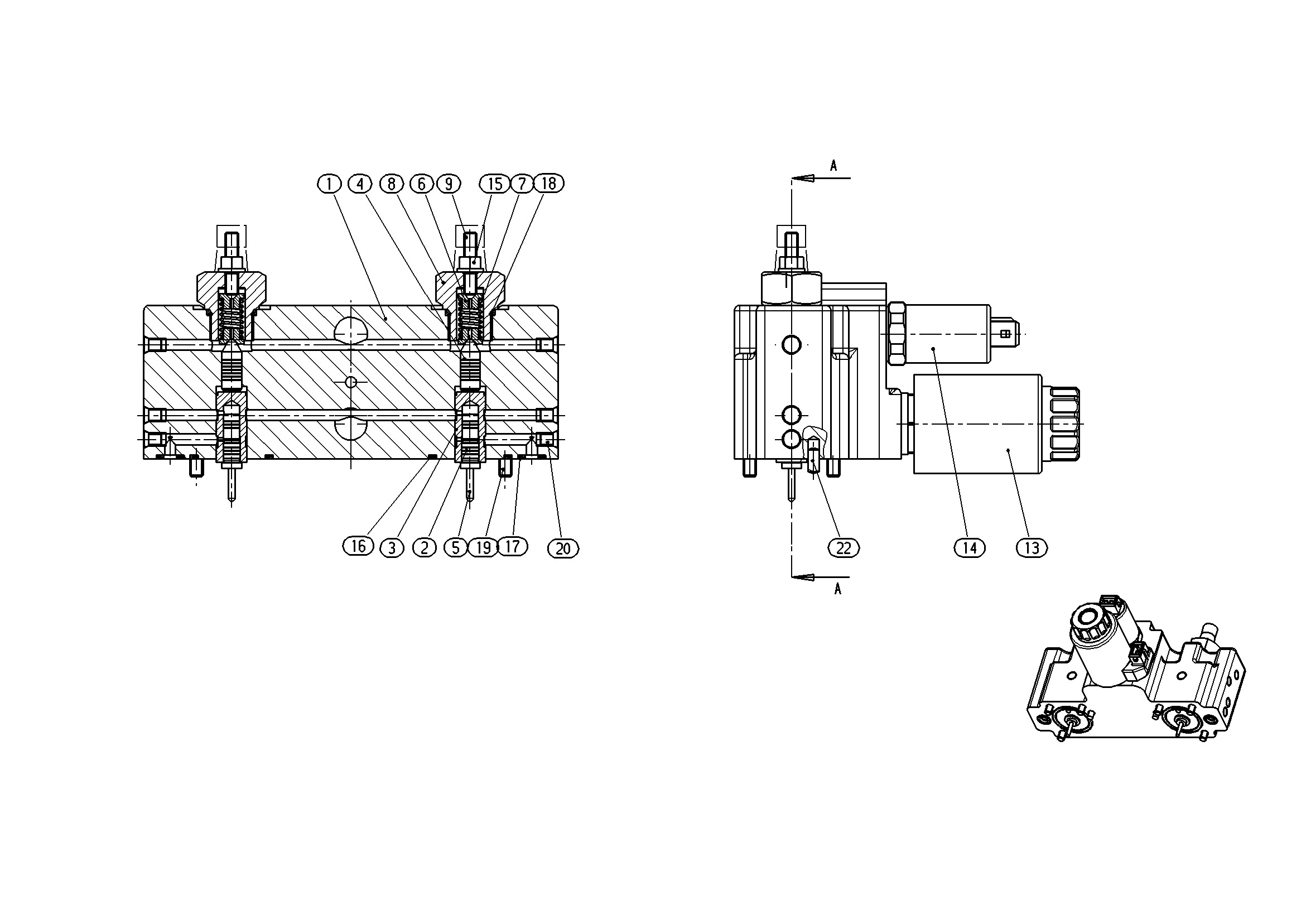

CONTROL UNITR902084294
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902084295 | CONTROL HOUSING | 1 | ||
| 2 | R909430661 | CONTROL PISTON | 2 | |
| R909436379 | CONTROL SLEEVE | 2 | ||
| R902009638 | POSITIONING PISTON | 1 | ||
| R909431195 | PIN | 2 | ||
| 6 | R909430649 | SPRING DISK | 2 | |
| R909650259 | COMPRESSION SPRING | 1 | ||
| R909436380 | SCREW PLUG | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086730 | O-RINGD | 2 | ||
| R902600655 | O-RINGD | 2 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 6 | ||
| 20 | R909831318 | DOUBLE BREAK-OFF PLUG | 6 | |
| R909084149 | STRAIGHT PIN | 2 |
