Baugruppe

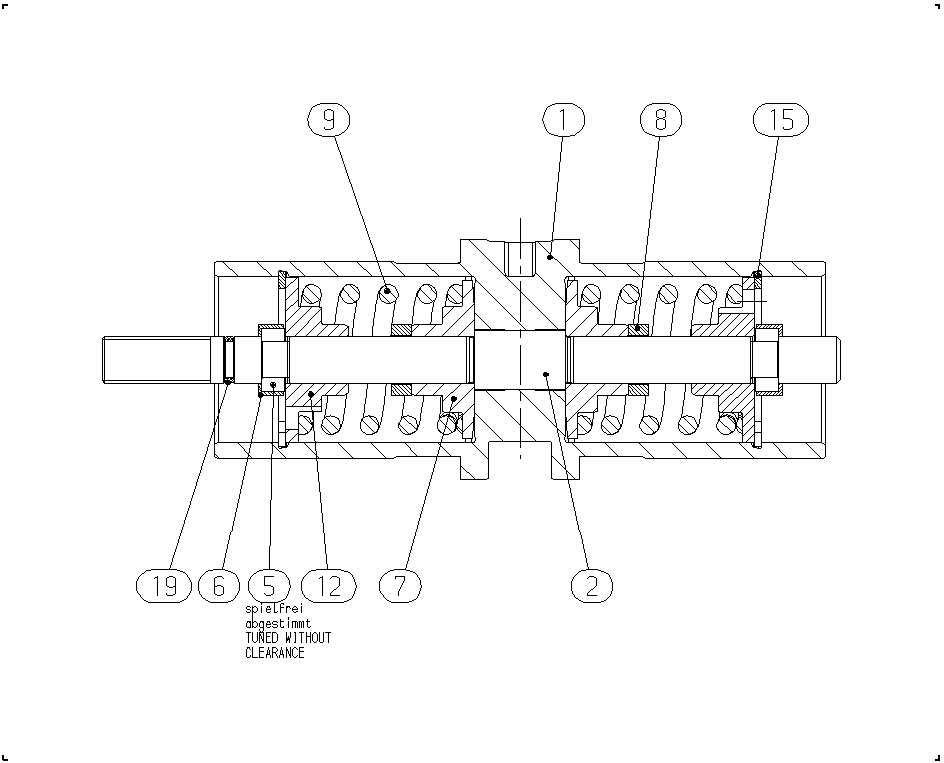

POSITIONING PISTONR902085239
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902085227 | POSITIONING PISTON | 1 | ||
| R909449238 | ROD | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 2 | ||
| R902015509 | RING | 2 | ||
| R902015510 | RING | 2 | ||
| R902015511 | RING | 2 | ||
| R902015512 | RING | 2 | ||
| R902015514 | RING | 2 | ||
| R902015513 | RING | 2 | ||
| R902600489 | LOCATING RING | 2 | ||
| R902085233 | SPRING DISK | 2 | ||
| R909435635 | SPACER RING | 2 | ||
| R909435636 | SPACER RING | 2 | ||
| R909445782 | SPACER RING | 2 | ||
| R909445783 | SPACER RING | 2 | ||
| R909445784 | SPACER RING | 2 | ||
| R909445785 | SPACER RING | 2 | ||
| R902085235 | COMPRESSION SPRING | 2 | ||
| R902085234 | SPRING DISK | 2 | ||
| R909083402 | RETAINING RING | 2 | ||
| R909085709 | O-RINGD | 1 |
