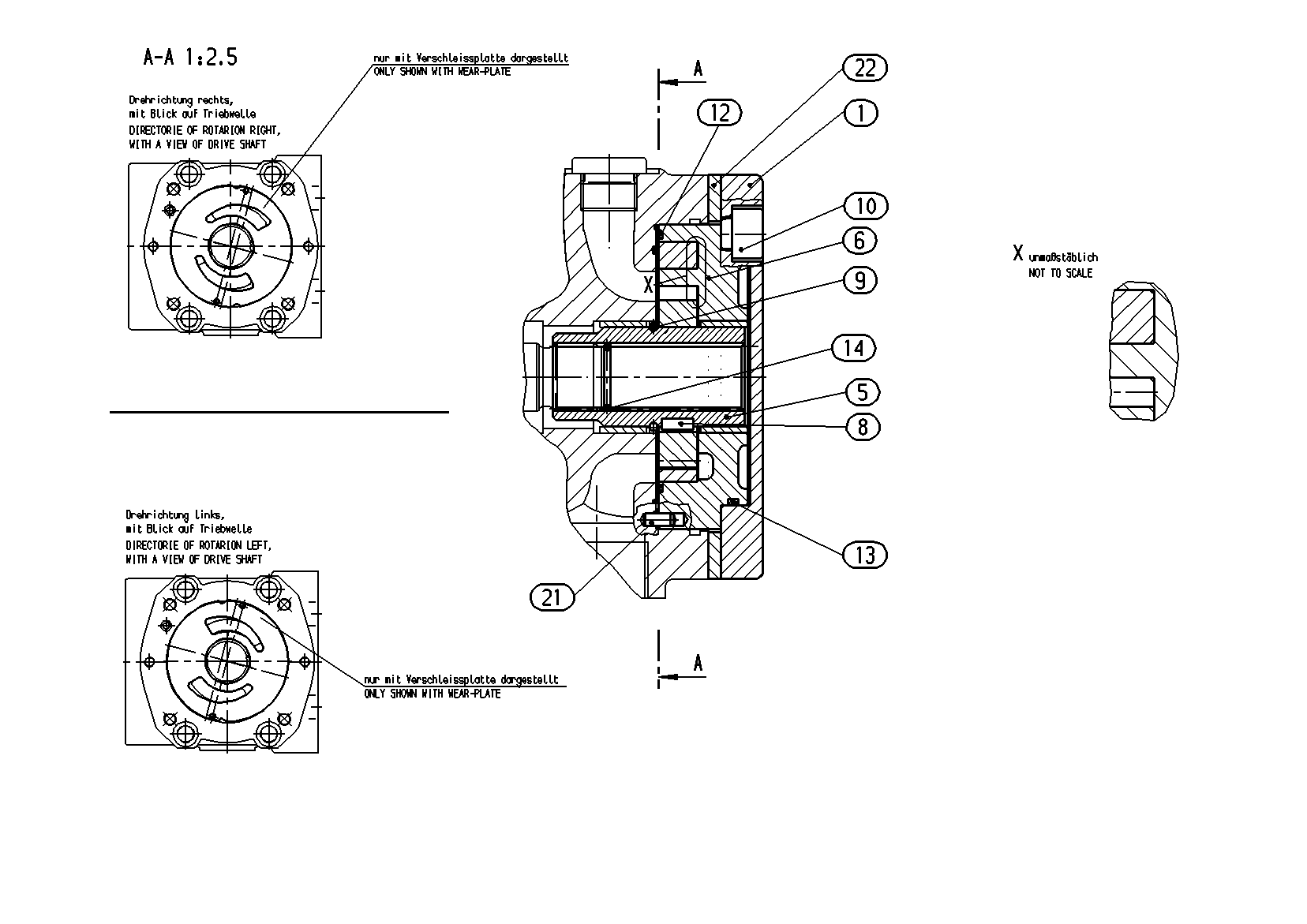

Baugruppe
INTERNAL GEAR PUMPR902085295
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909921500 | COVER | 1 | |
| R902085280 | THROUGH DRIVE SHAFT | 1 | ||
| R902105647 | HOUSING Stückliste der Baugruppe →L | 1 | ||
| R902025645 | PARALLEL KEY | 1 | ||
| 9 | R913057533 | SNAP RING | 1 | |
| R909083058 | SOCKET HEAD CAP SCREW | 4 | ||
| 12 | R913037188 | KANTSEALD | 1 | |
| R909084504 | O-RINGD | 1 | ||
| R902601471 | SNAP RING | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902015656 | SHIM RING | 1 |
