Baugruppe

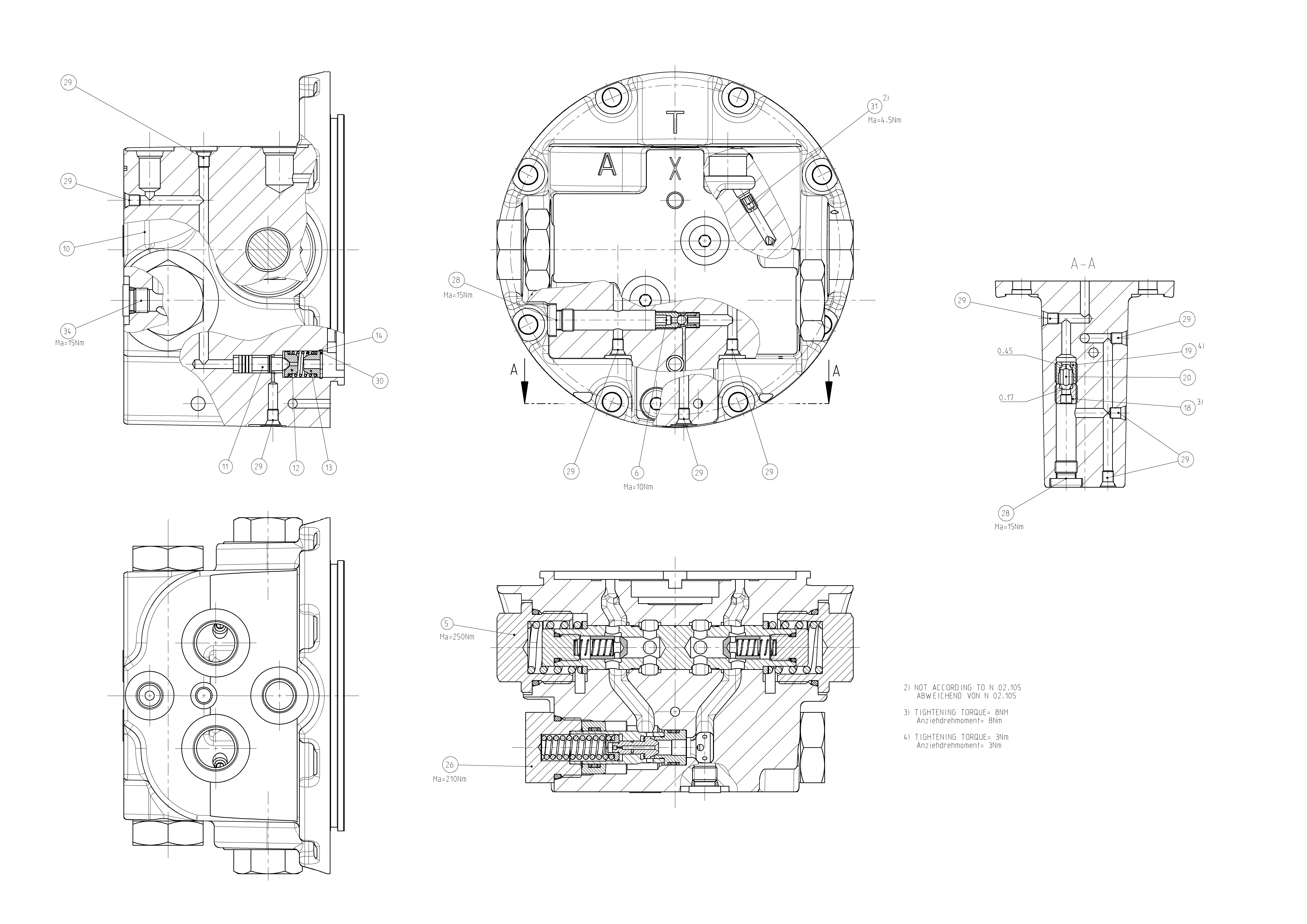

CONNECTION PLATER902085331
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902025868 | BRAKE PISTON Stückliste der Baugruppe →L | 1 | ||
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902085330 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R902020365 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902243619 | THROTTLE SCREW | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R902085363 | THROTTLE PIN | 1 | ||
| R930000415 | SPARE PART | 2 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083379 | RETAINING RING | 1 | ||
| R909156494 | NOZZLE | 2 | ||
| R910764647 | SCREW PLUG | 2 |
