Baugruppe

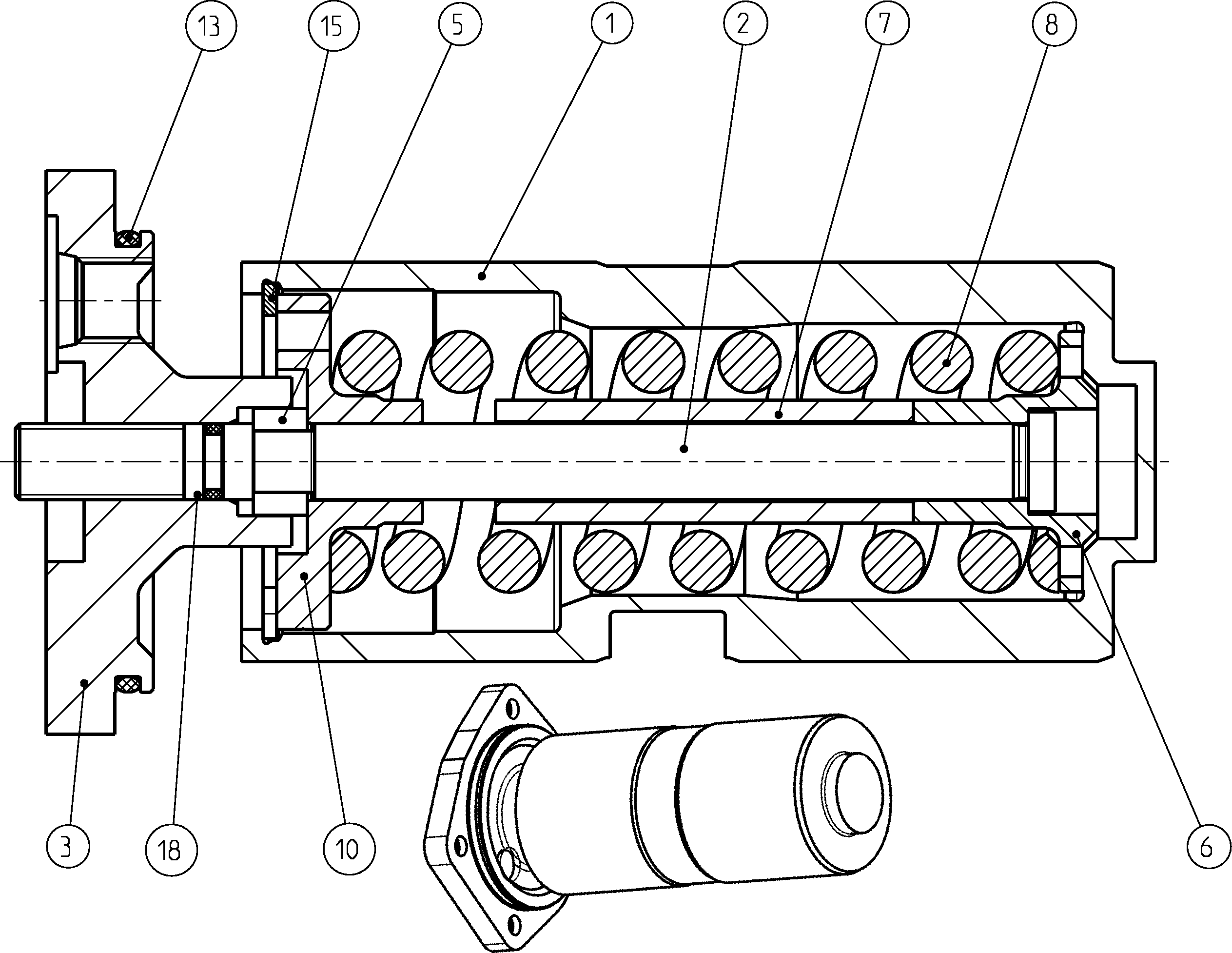

POSITIONING PISTONR902085423
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902078491 | POSITIONING PISTON | 1 | ||
| R909440855 | ROD | 1 | ||
| R902272172 | COVER | 1 | ||
| R909436219 | RING | 1 | ||
| R909436220 | RING | 1 | ||
| R909436221 | RING | 1 | ||
| R909436222 | RING | 1 | ||
| R909436223 | RING | 1 | ||
| R909436224 | RING | 1 | ||
| R909650222 | RING | 1 | ||
| R909650223 | RING | 1 | ||
| R909650224 | RING | 1 | ||
| R902035529 | SPRING DISK | 1 | ||
| R902071066 | SPACER BUSHING | 1 | ||
| R902071067 | SPACER BUSHING | 1 | ||
| R909445155 | SPACER BUSHING | 1 | ||
| R902062258 | SPACER BUSHING | 1 | ||
| R909445154 | SPACER BUSHING | 1 | ||
| R902035533 | COMPRESSION SPRING | 1 | ||
| R902035531 | SPRING DISK | 1 | ||
| R909086377 | O-RINGD | 1 | ||
| R909085359 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 |
