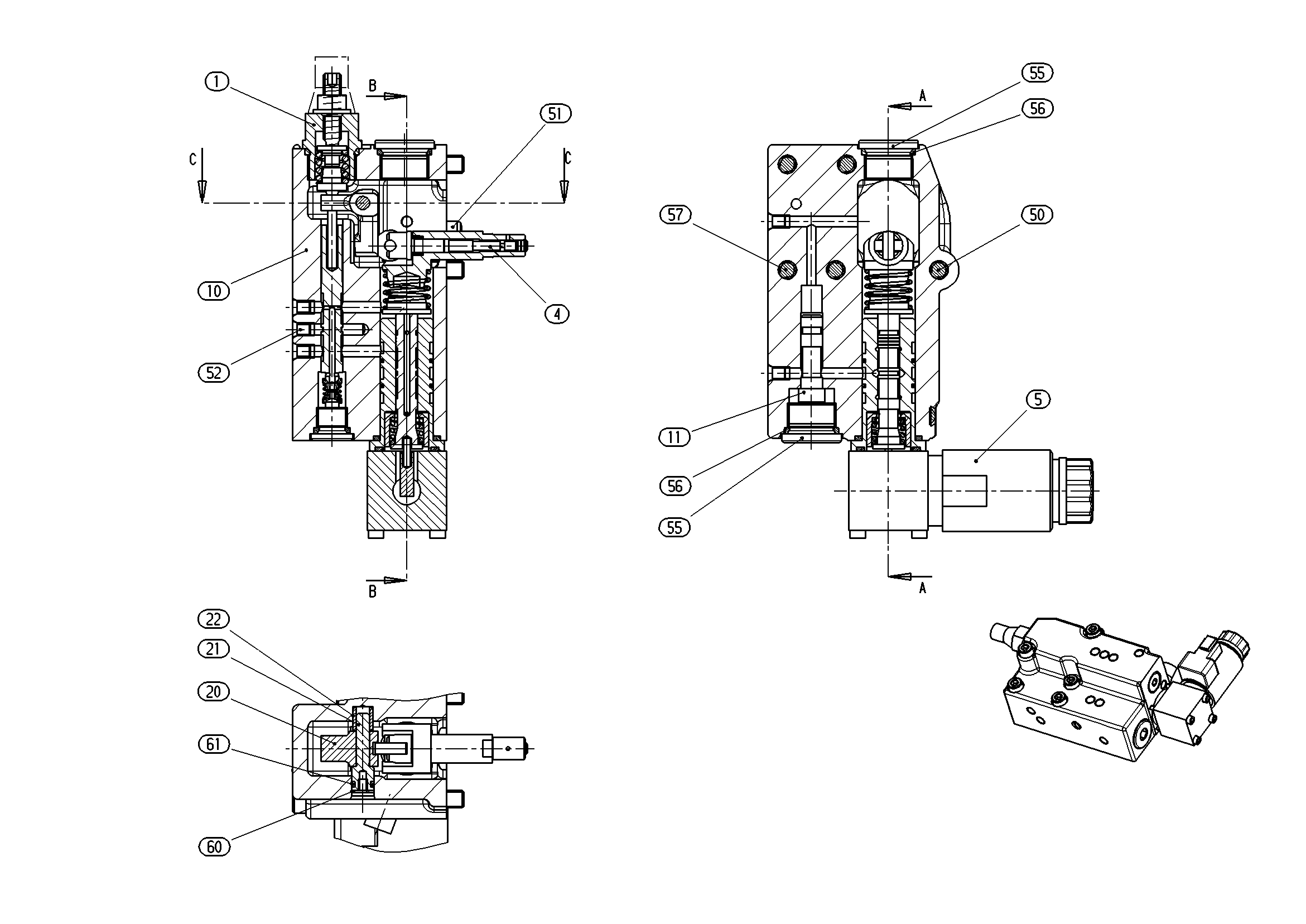

Baugruppe
REGULATORR902087738
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909600842 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902119491 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902087739 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902119358 | CONTROL HOUSING | 1 | ||
| 11 | R909445250 | LOCKING BOLT | 1 | |
| R902134025 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 2 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 3 | ||
| 58 | R909153364 | SCREW PLUG | 1 | |
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002462 | SEAL KIT | 1 |
