Baugruppe

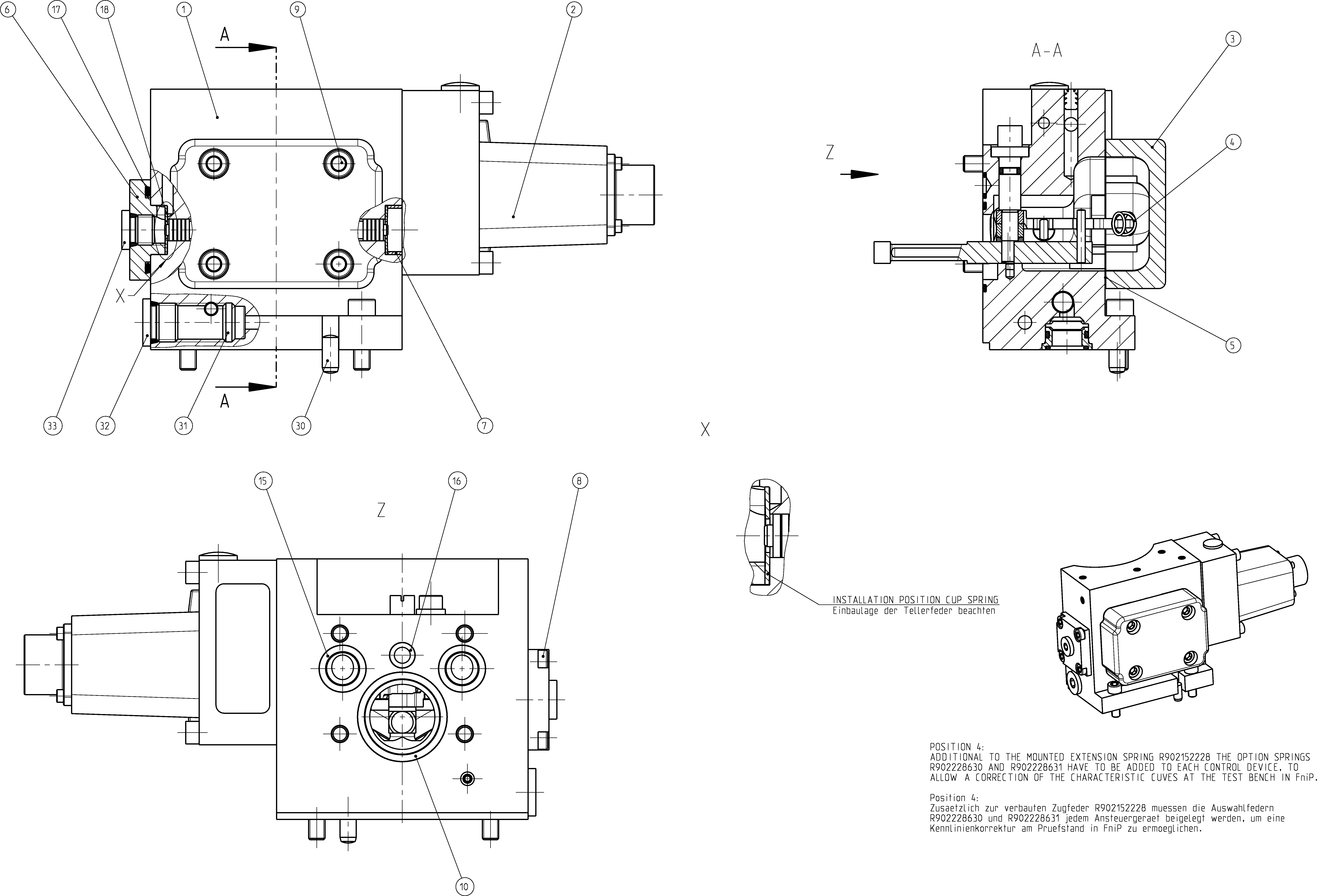

CONTROL MODULER902088326
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902089811 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902602763 | SERVO VALVE | 1 | ||
| R909443201 | COVER | 1 | ||
| R902152228 | EXTENSION SPRING | 1 | ||
| R902228630 | EXTENSION SPRING | 1 | ||
| R902228631 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| R902105252 | LOCATION PIECE | 1 | ||
| R902087829 | SPACER SLEEVE | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086523 | O-RING | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083764 | O-RING | 1 | ||
| R902601640 | DISC SPRING | 2 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R902602762 | FILTER | 1 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R910764647 | SCREW PLUG | 1 |
