Baugruppe

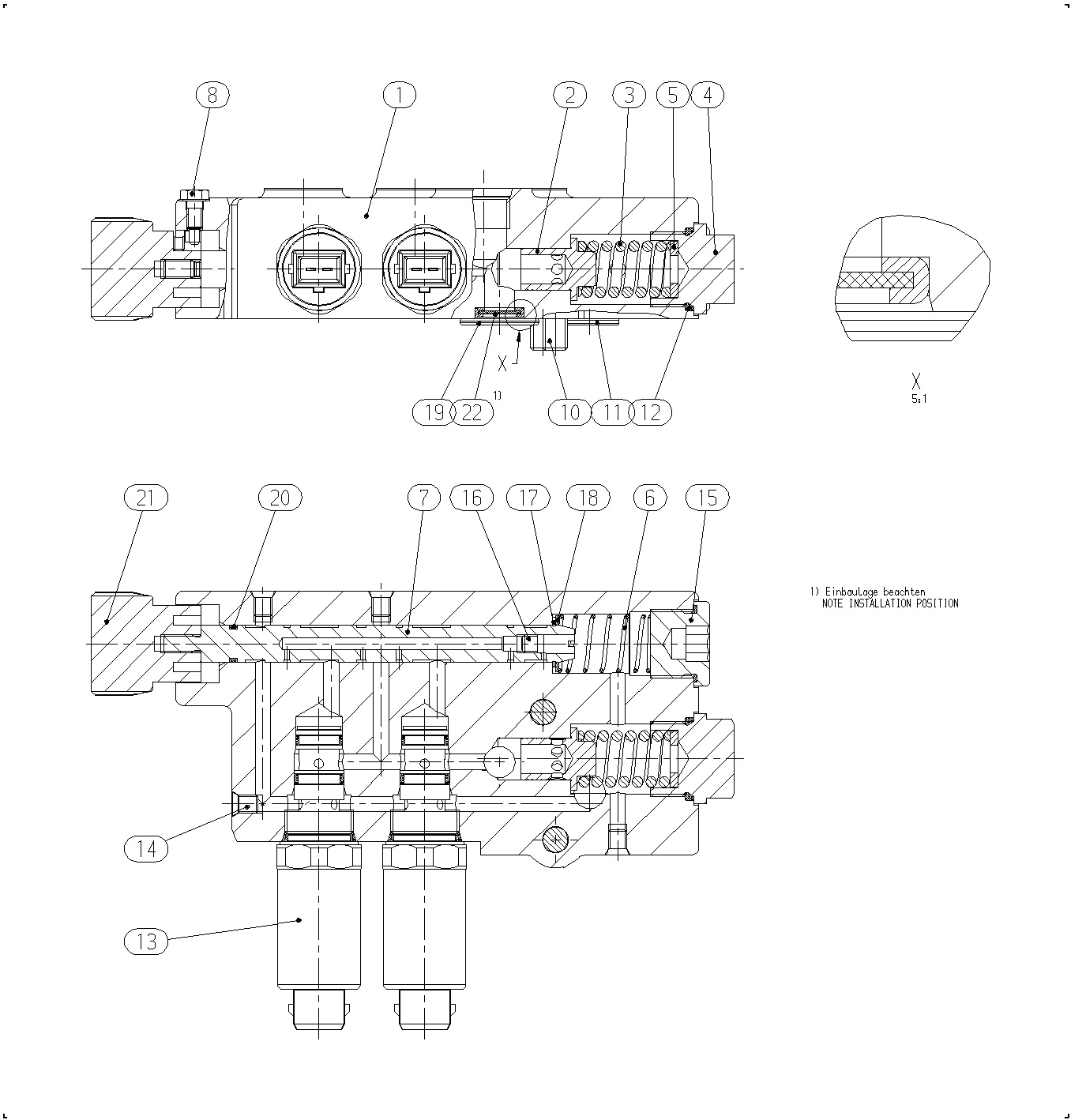

CONNECTION PLATER902088786
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902088676 | CONNECTION PLATE | 1 | ||
| R902088920 | VALVE SPOOL | 1 | ||
| R902030583 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R909080511 | WASHER | 1 | ||
| R902090023 | COMPRESSION SPRING | 1 | ||
| R902088718 | CONTROL PISTON | 1 | ||
| R902088983 | HEXAGON SCREW | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 2 | ||
| R909152691 | O-RING | 2 | ||
| R909152686 | O-RING | 1 | ||
| R900727801 | PRESSURE REDUCING VALVE | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909156654 | SCREW PLUG | 1 | ||
| R902600705 | PLUG | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909086223 | SUPPORTING DISC | 1 | ||
| R909152686 | O-RING | 1 | ||
| R909086487 | O-RING | 1 | ||
| R902602877 | PUSH-BUTTON | 1 | ||
| R902602861 | FILTER | 1 |
