Baugruppe

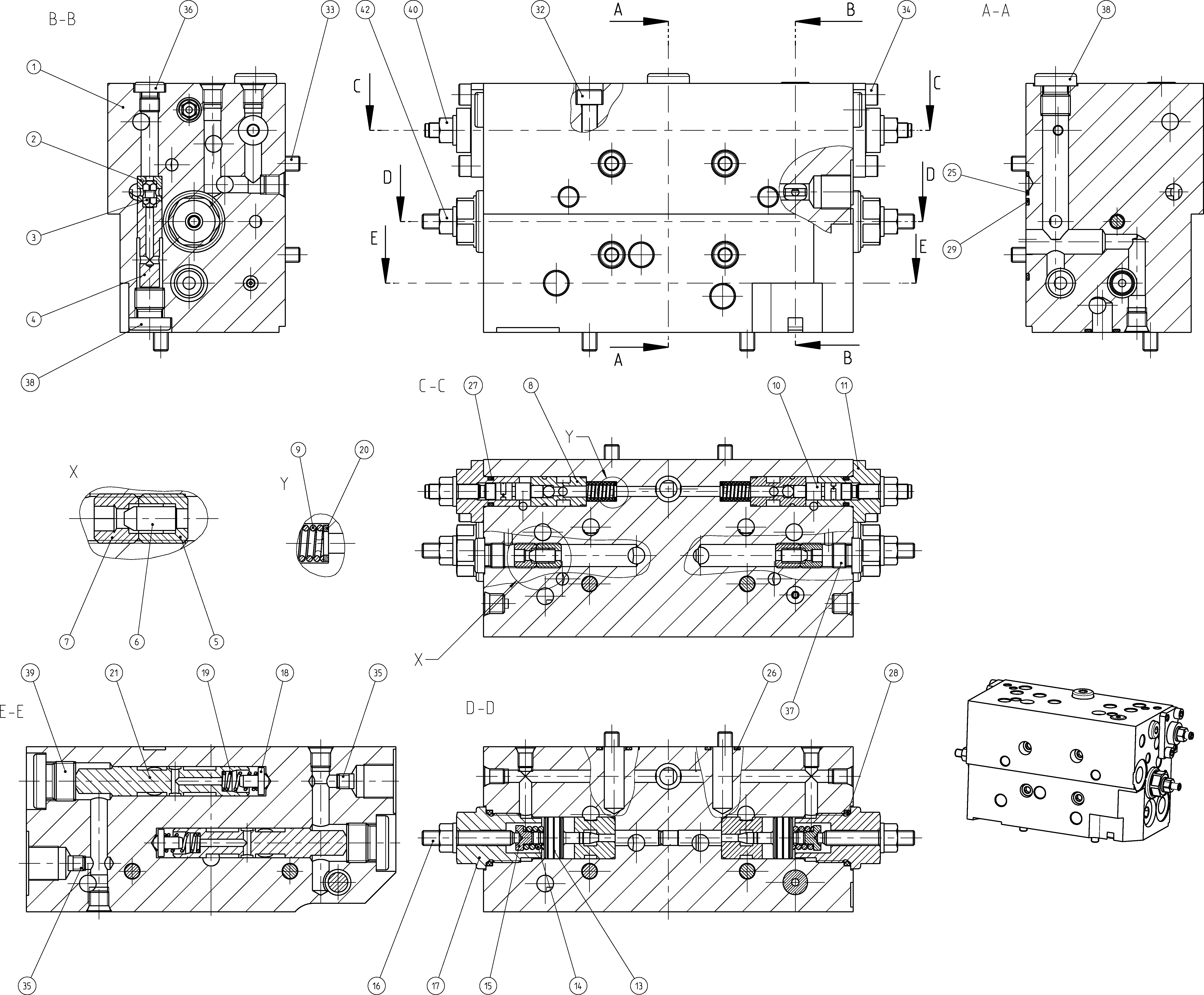

CONTROL UNITR902089040
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902156547 | HOUSING ASSEMBLY GROUP | 1 | ||
| R909443061 | VALVE HOUSING | 1 | ||
| R909443060 | VALVE PIN | 1 | ||
| R902005869 | VALVE HOUSING | 1 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909439287 | VALVE PIN | 2 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R902040706 | BRAKE PISTON Stückliste der Baugruppe →L | 2 | ||
| R902027518 | COMPRESSION SPRING | 2 | ||
| R902040749 | VALVE SPOOL | 2 | ||
| R902069140 | SEALING COVER | 2 | ||
| R902028453 | PISTON | 2 | ||
| R902025104 | COMPRESSION SPRING | 2 | ||
| R902026449 | SPRING DISK | 2 | ||
| R902026558 | SETSCREW | 2 | ||
| R902026450 | SCREW PLUG | 2 | ||
| R902031489 | SPRING DISK | 2 | ||
| R909416997 | COMPRESSION SPRING | 2 | ||
| R902037559 | SHIM RING | 2 | ||
| R902031491 | CONTROL PISTON | 2 | ||
| R909087877 | O-RING | 1 | ||
| R909157915 | O-RING | 4 | ||
| R909086487 | O-RING | 2 | ||
| R909087938 | O-RING | 2 | ||
| R902600649 | O-RING | 1 | ||
| R909083031 | SOCKET HEAD CAP SCREW | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156494 | NOZZLE | 2 | ||
| R909156863 | SCREW PLUG | 1 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909156650 | SCREW PLUG | 2 | ||
| R909156864 | SCREW PLUG | 2 | ||
| R909157764 | SEALING NUT | 2 | ||
| R909152425 | SEALING NUT | 2 |
