Baugruppe

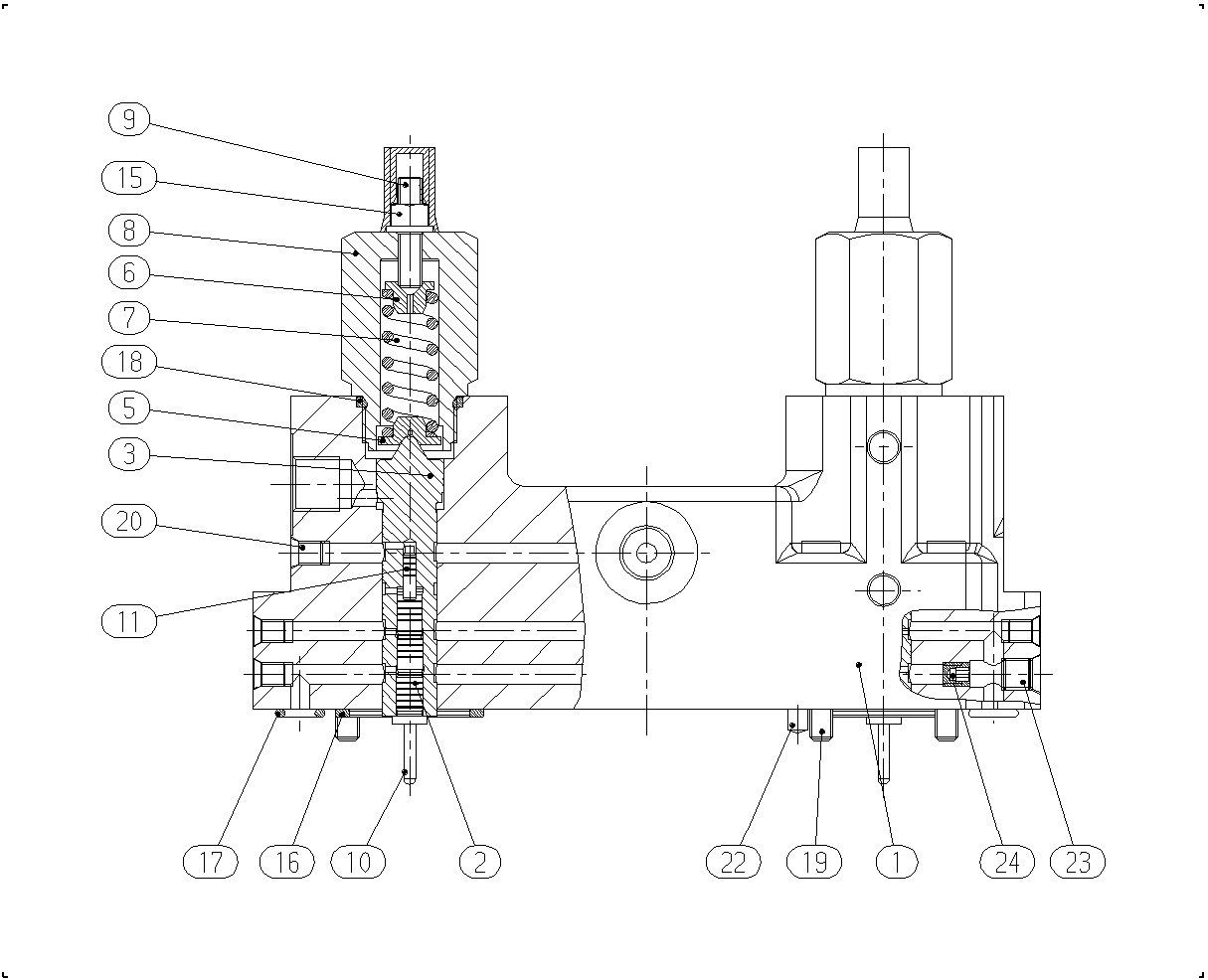

CONTROL MODULER902090015
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902090019 | CONTROL HOUSING | 1 | ||
| R902054797 | CONTROL PISTON | 2 | ||
| R902090020 | CONTROL SLEEVE | 2 | ||
| R909431526 | SPRING DISK | 2 | ||
| R909420414 | SPRING DISK | 2 | ||
| R909435520 | COMPRESSION SPRING | 2 | ||
| R909435522 | SCREW PLUG | 2 | ||
| R909420991 | SETSCREW | 2 | ||
| R909431195 | PIN | 2 | ||
| R902090124 | CONTROL PISTON | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909832103 | O-RINGD | 2 | ||
| R902600644 | O-RINGD | 2 | ||
| R909154316 | O-RINGD | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909084149 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600705 | PLUG | 1 |
