Baugruppe

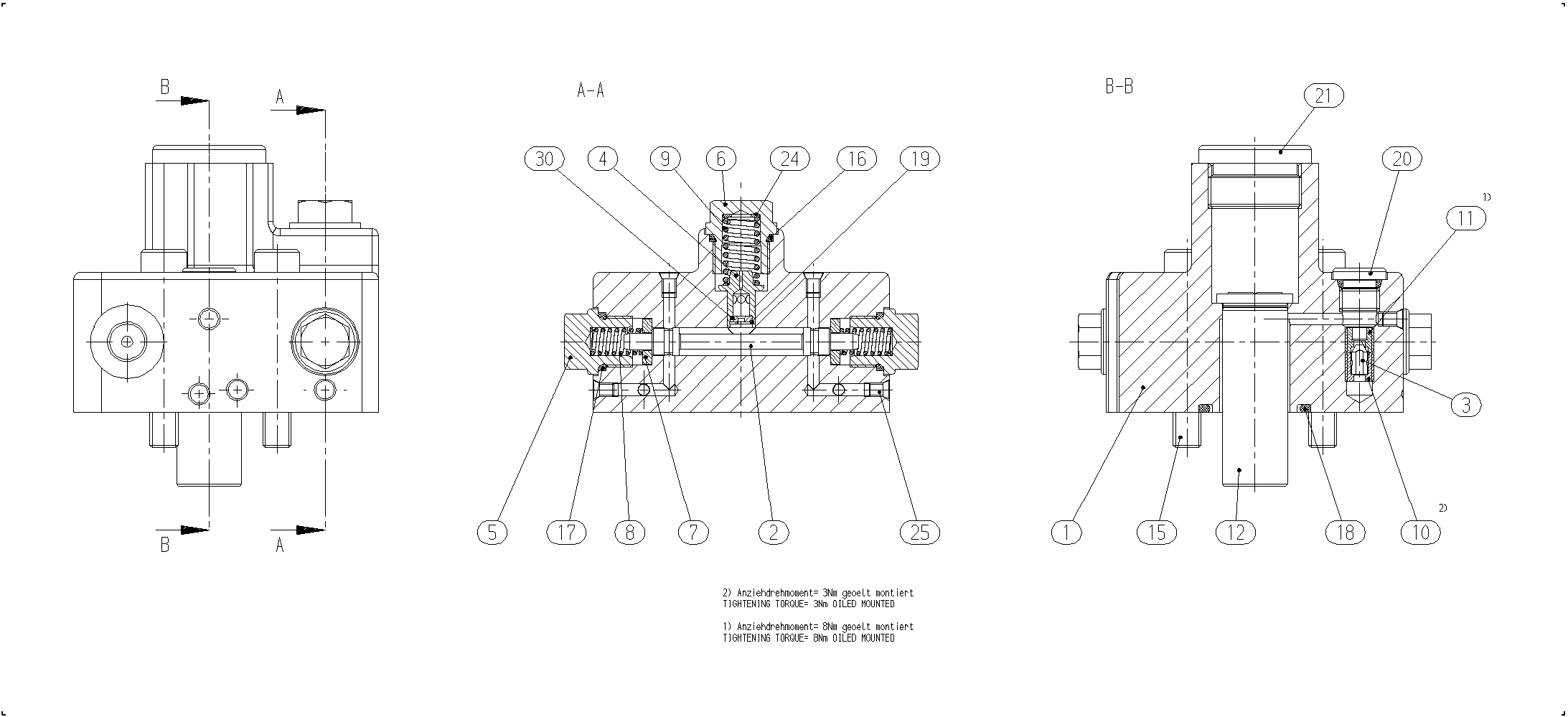

STROKE LIMITERR902090096
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902090051 | VALVE HOUSING | 1 | ||
| R902000156 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R902090075 | PISTON | 1 | ||
| R909084378 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087938 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 2 | ||
| R909085578 | O-RINGD | 1 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909831482 | SCREW PLUGD | 1 | ||
| R909156652 | SCREW PLUG | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 |
