Baugruppe

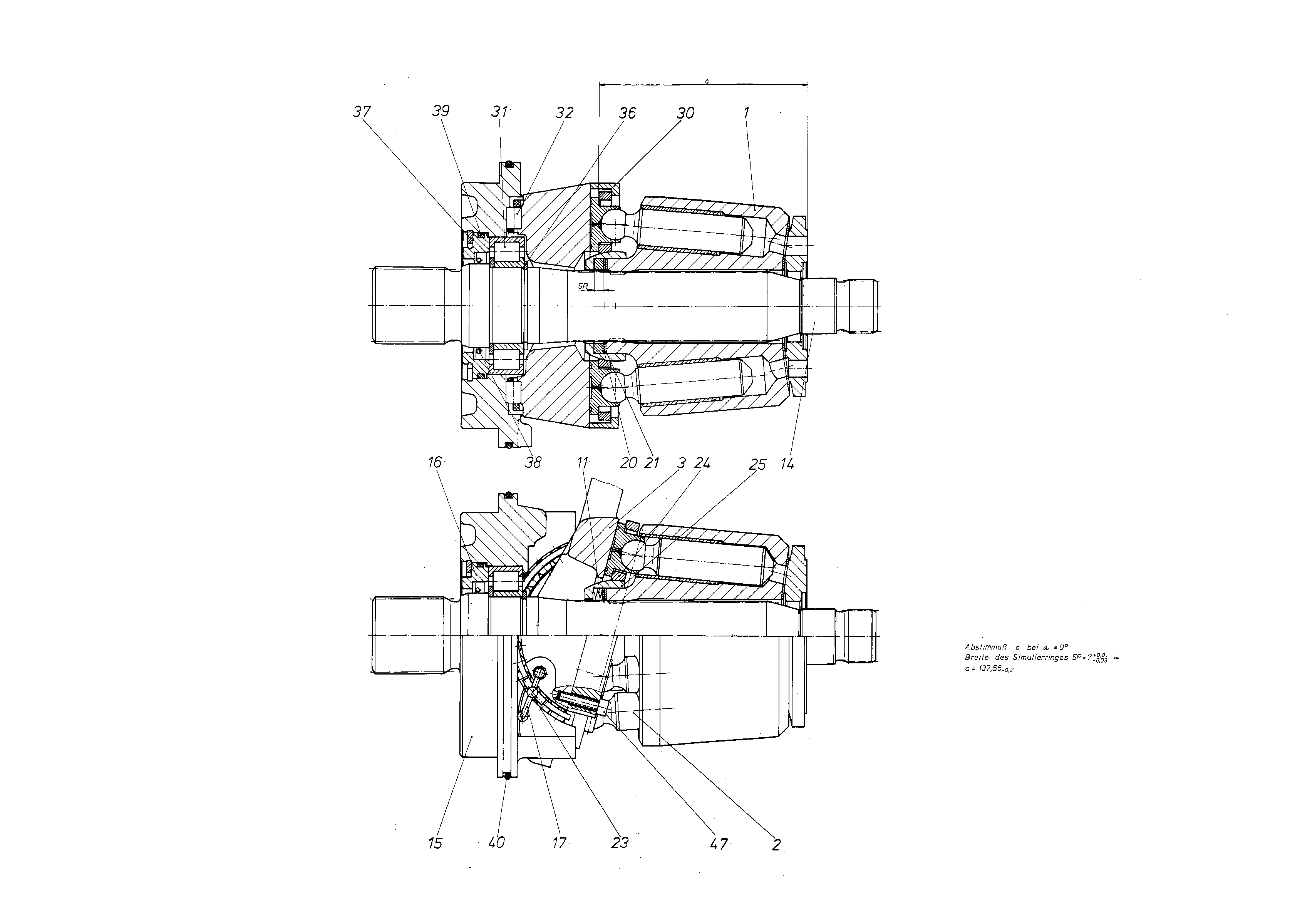

ROTARY GROUPR902090528
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909415129 | CYLINDER | 1 | ||
| R909078189 | PISTON PAD | 9 | ||
| R909429679 | CRADLE | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R909425380 | DRIVE SHAFT | 1 | ||
| R909435239 | BEARING FLANGE | 1 | ||
| R909420706 | LOCKING RINGD | 1 | ||
| R909417959 | WIRE | 2 | ||
| R909078319 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909412707 | SHIM RING | 1 | ||
| R909413043 | SHIM RING | 1 | ||
| R909413108 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902210083 | RETAINING PLATE | 1 | ||
| R909426460 | RETAINING BALL | 1 | ||
| R909431891 | RETAINING SEGMENT | 2 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| R909401843 | BEARING SEGMENT Stückliste der Baugruppe →L | 2 | ||
| R909084416 | RETAINING RING | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083824 | O-RINGD | 1 | ||
| R909157233 | O-RINGD | 1 | ||
| R909831330 | SOCKET HEAD CAP SCREW | 4 |
