Baugruppe

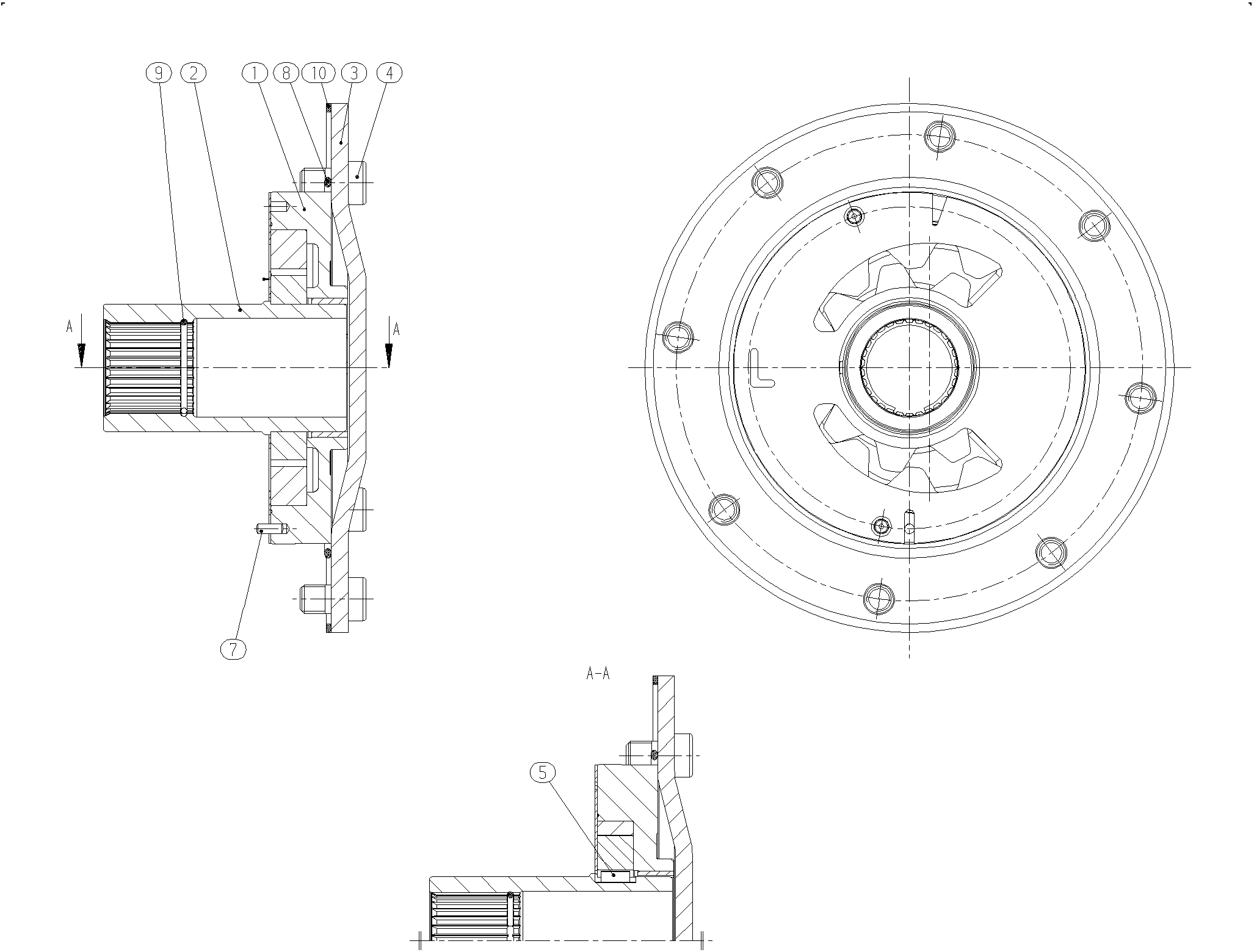

INTERNAL GEAR PUMPR902095343
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902095330 | HOUSING Stückliste der Baugruppe →L | 1 | ||
| R902095329 | PLUG-IN SHAFT | 1 | ||
| R902085495 | COVER | 1 | ||
| R909083203 | SOCKET HEAD CAP SCREW | 8 | ||
| R902095236 | PARALLEL KEY | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902603025 | O-RINGD | 1 | ||
| R909830236 | SNAP RING | 1 | ||
| R902602987 | KANTSEALD | 1 |
