Baugruppe

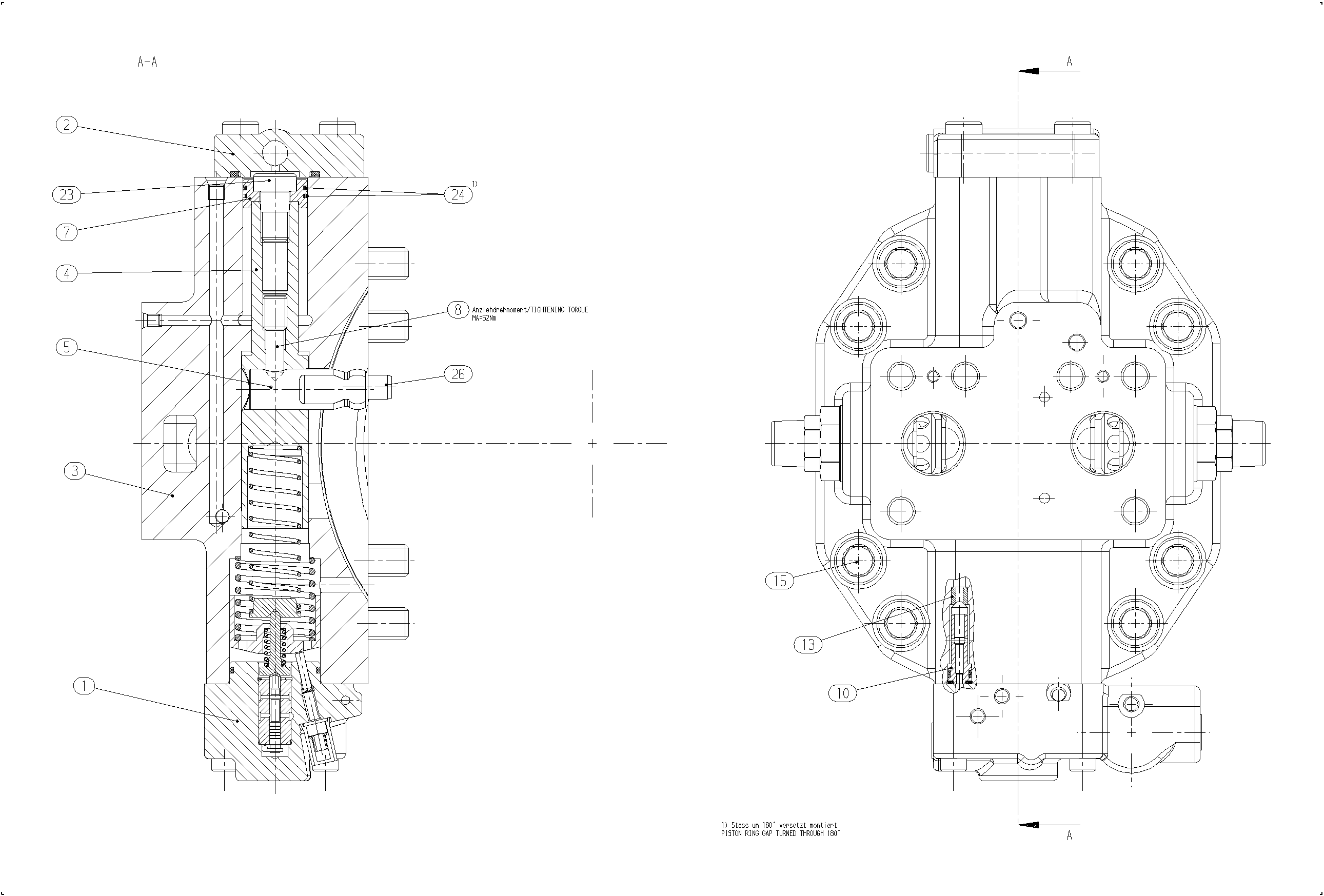

CONTROLR902096787
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902096785 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R902096783 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902096767 | COVER PLATE | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R902086749 | POSITIONING STUD | 1 | ||
| R902088535 | PISTON | 1 | ||
| R902101482 | SETSCREW | 1 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R909412756 | BUSHING | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| 20 | R909085577 | O-RINGD | 4 | |
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| 28 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R902601709 | SCREW PLUGD | 2 | |
| 50 | R902603807 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 |
