Baugruppe

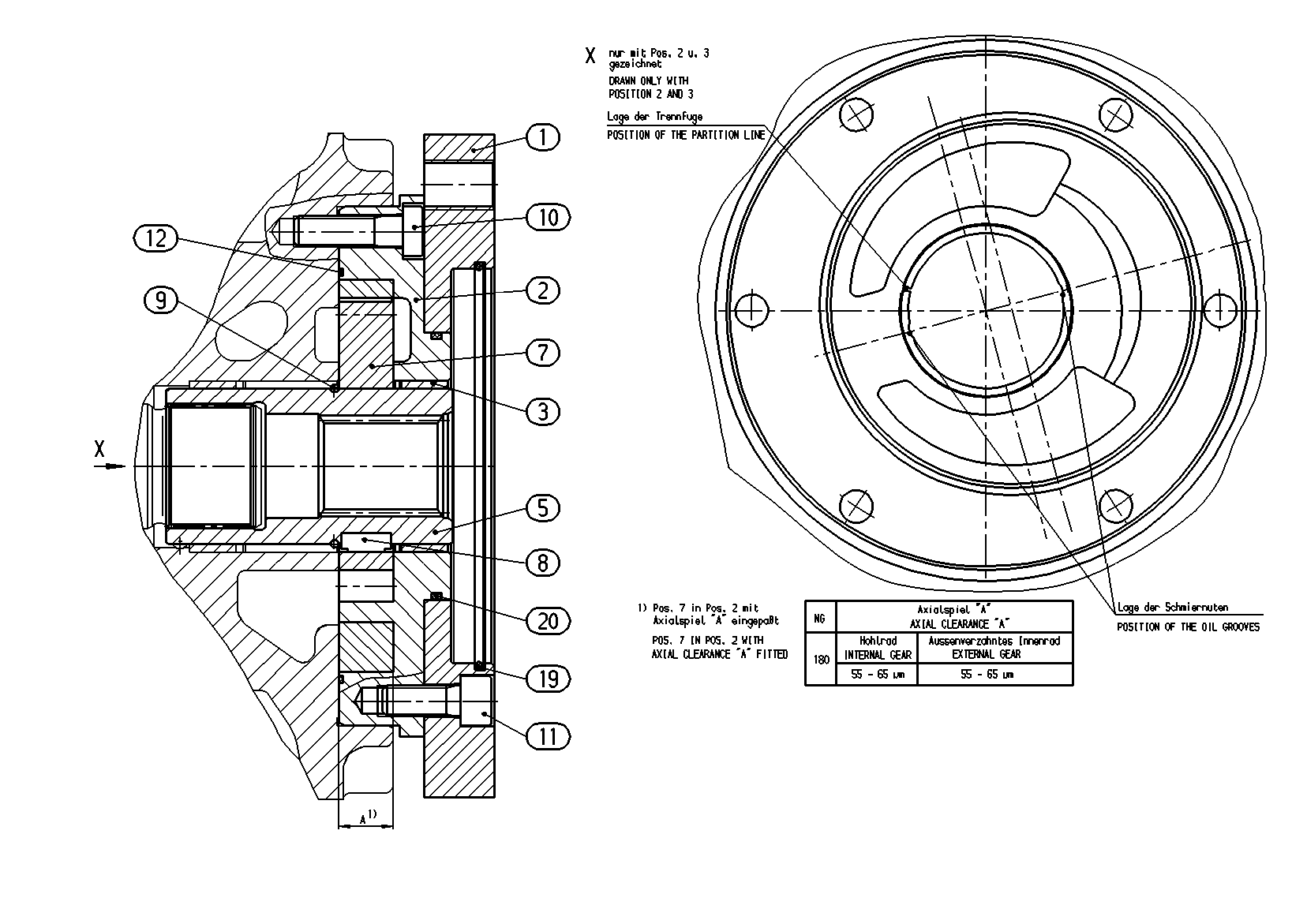

INTERNAL GEAR PUMPR902099670
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909431732 | INTERMEDIATE FLANGE | 1 | ||
| R902071476 | PUMP COVER | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R902097905 | THROUGH DRIVE SHAFT | 1 | ||
| R902085113 | WHEEL SET | 1 | ||
| R902112886 | PARALLEL KEY | 1 | ||
| R909154019 | SNAP RING | 1 | ||
| R909831914 | SOCKET HEAD CAP SCREW | 6 | ||
| R909084748 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157881 | O-RINGD | 1 | ||
| R913002054 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
