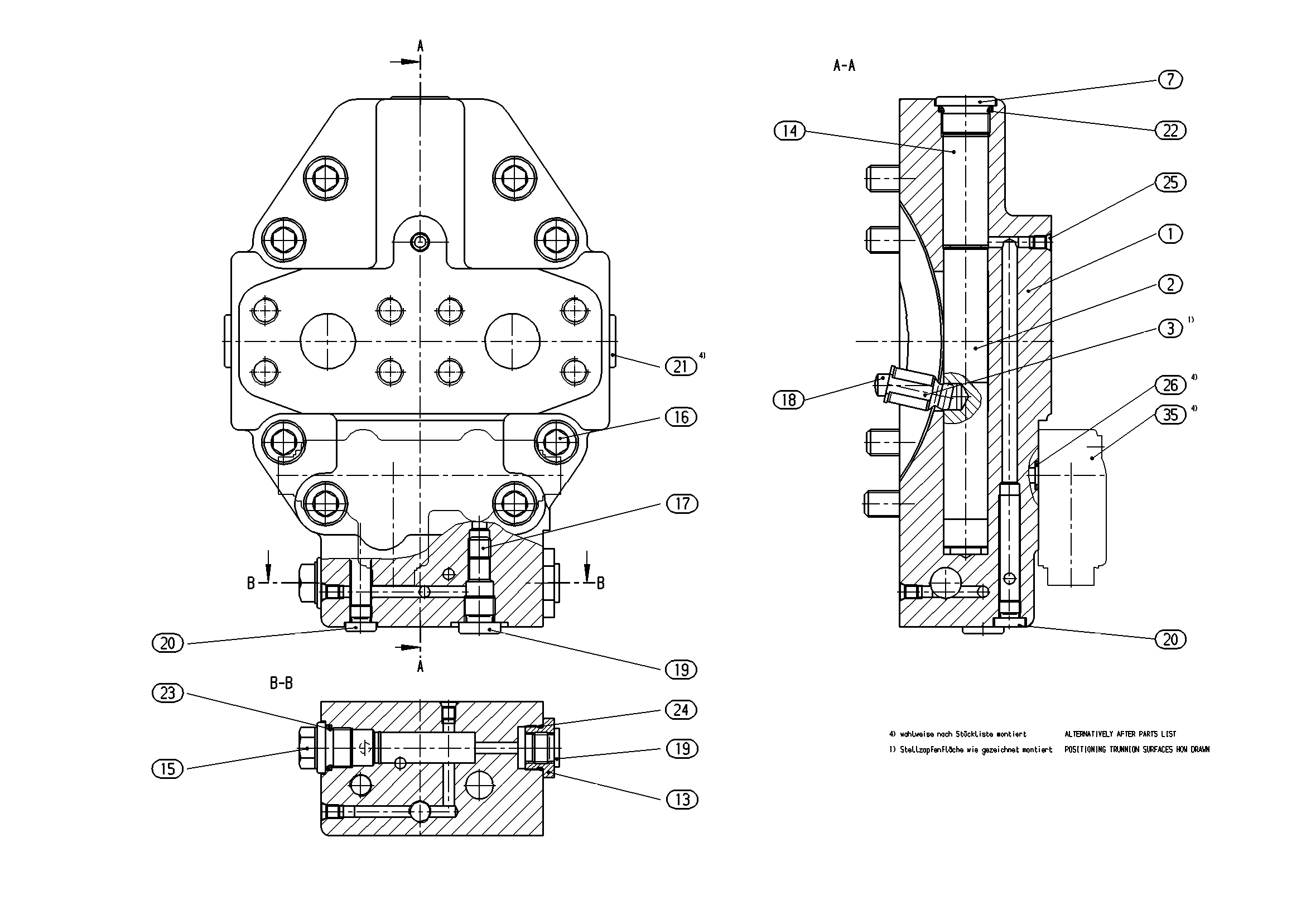

Baugruppe
CONTROLR902102507
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902102508 | COVER PLATE | 1 | ||
| R909921970 | POSITIONING PISTON | 1 | ||
| R909650145 | POSITIONING STUD | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| R909922092 | THREADED REDUCING STUD | 1 | ||
| R902102509 | BOLT | 1 | ||
| R909083223 | SCREW PLUG | 1 | ||
| R909083092 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 2 | ||
| R909830995 | SETSCREW | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R913044793 | SCREW PLUGD | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909156651 | SCREW PLUG | 2 | ||
| R909154235 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 1 | ||
| R909154317 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909086487 | O-RINGD | 3 | ||
| 36 | R902075319 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 |
