Baugruppe

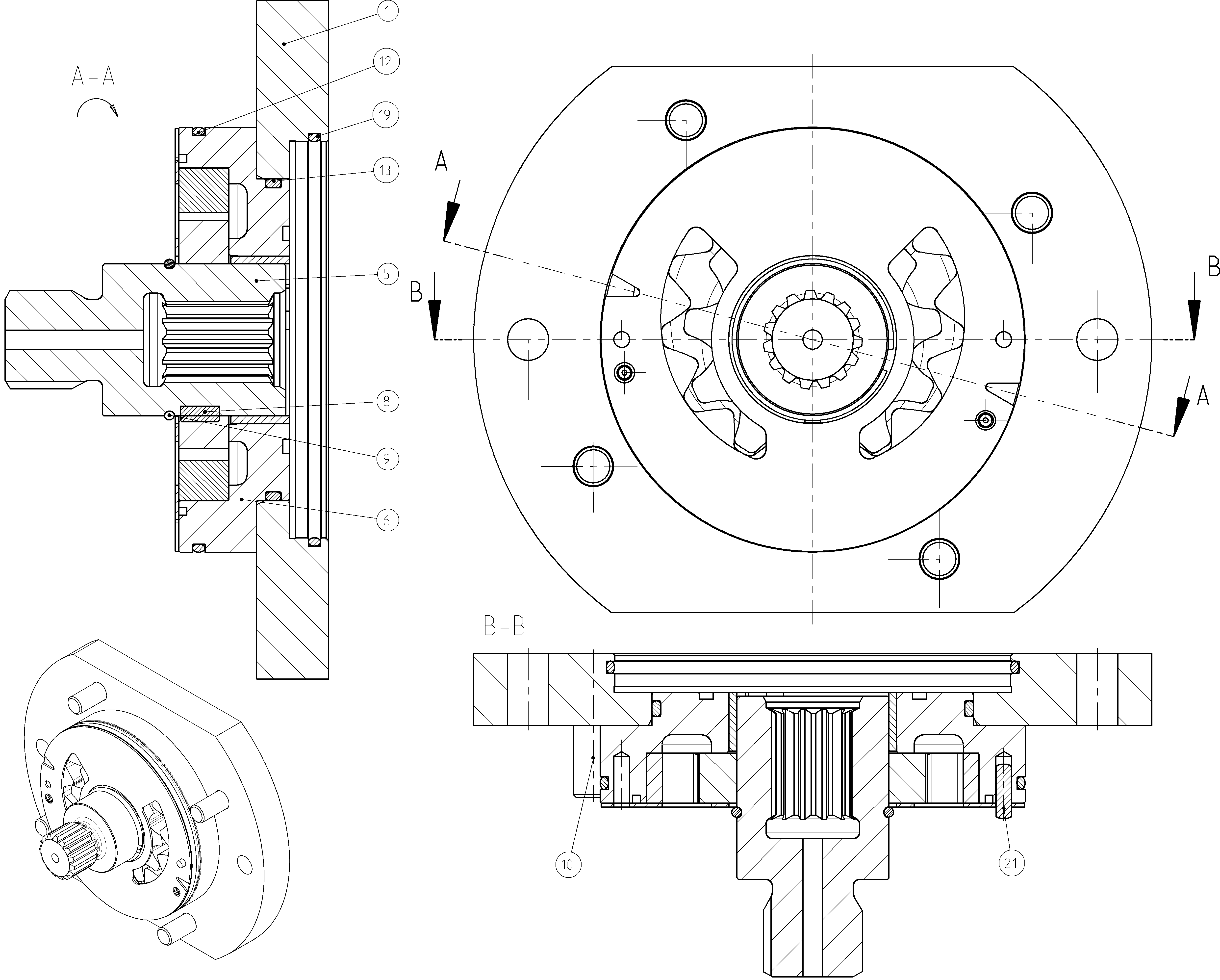

INTERNAL GEAR PUMPR902103477
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902103450 | INTERMEDIATE FLANGE | 1 | ||
| R902095397 | THROUGH DRIVE COUPLING | 1 | ||
| R902124940 | HOUSING Stückliste der Baugruppe →L | 1 | ||
| R902025645 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086823 | O-RINGD | 1 | ||
| R909084504 | O-RINGD | 1 | ||
| R913032365 | O-RING | 1 | ||
| R909087694 | STRAIGHT PIN | 1 |
