Baugruppe

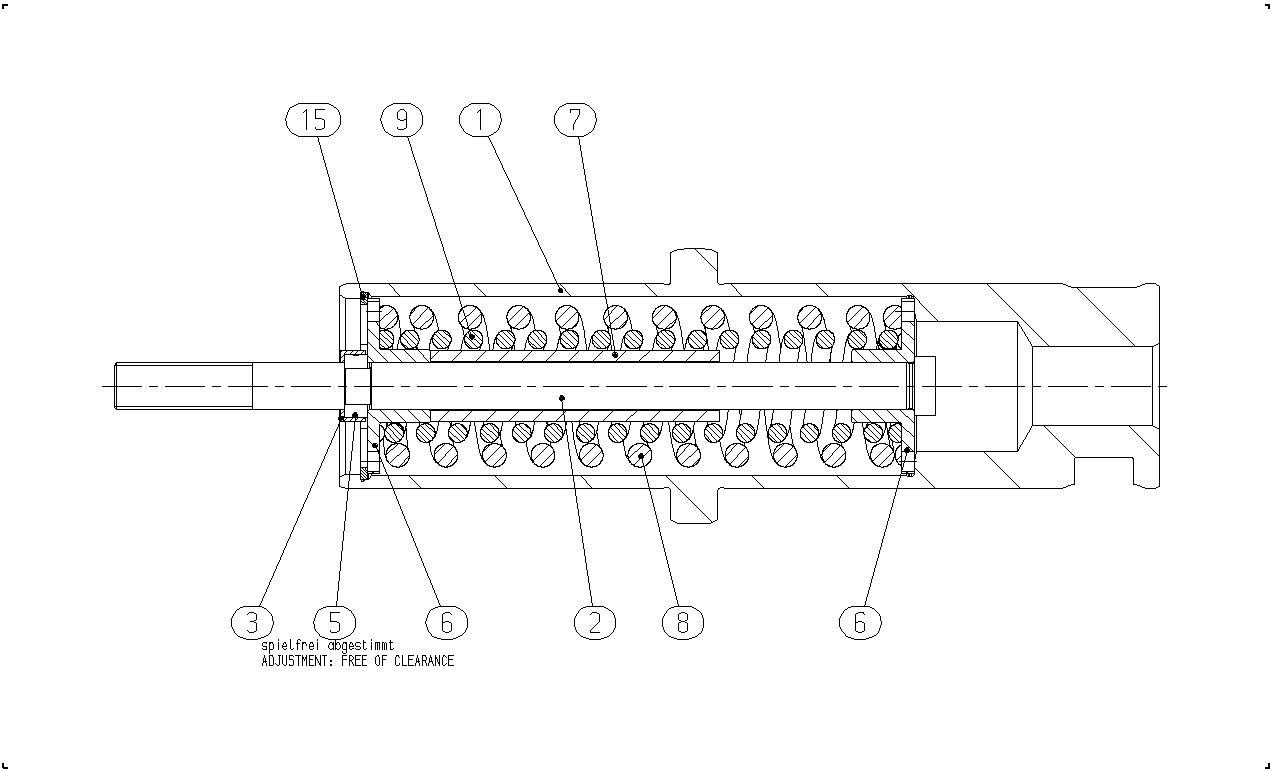

POSITIONING PISTONR902105717
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902114277 | POSITIONING PISTON | 1 | ||
| R902078410 | THREADED ROD | 1 | ||
| R902600489 | LOCATING RING | 1 | ||
| R902015508 | RING | 1 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| R902108898 | SPRING DISK | 2 | ||
| R902085177 | SPACER BUSHING | 1 | ||
| R902085485 | SPACER BUSHING | 1 | ||
| R902085486 | SPACER BUSHING | 1 | ||
| R902085487 | SPACER BUSHING | 1 | ||
| R902085488 | SPACER BUSHING | 1 | ||
| R902085489 | SPACER BUSHING | 1 | ||
| R902108900 | SPACER BUSHING | 1 | ||
| R902105692 | COMPRESSION SPRING | 1 | ||
| R902105693 | COMPRESSION SPRING | 1 | ||
| R909083403 | RETAINING RING | 1 |
