Baugruppe

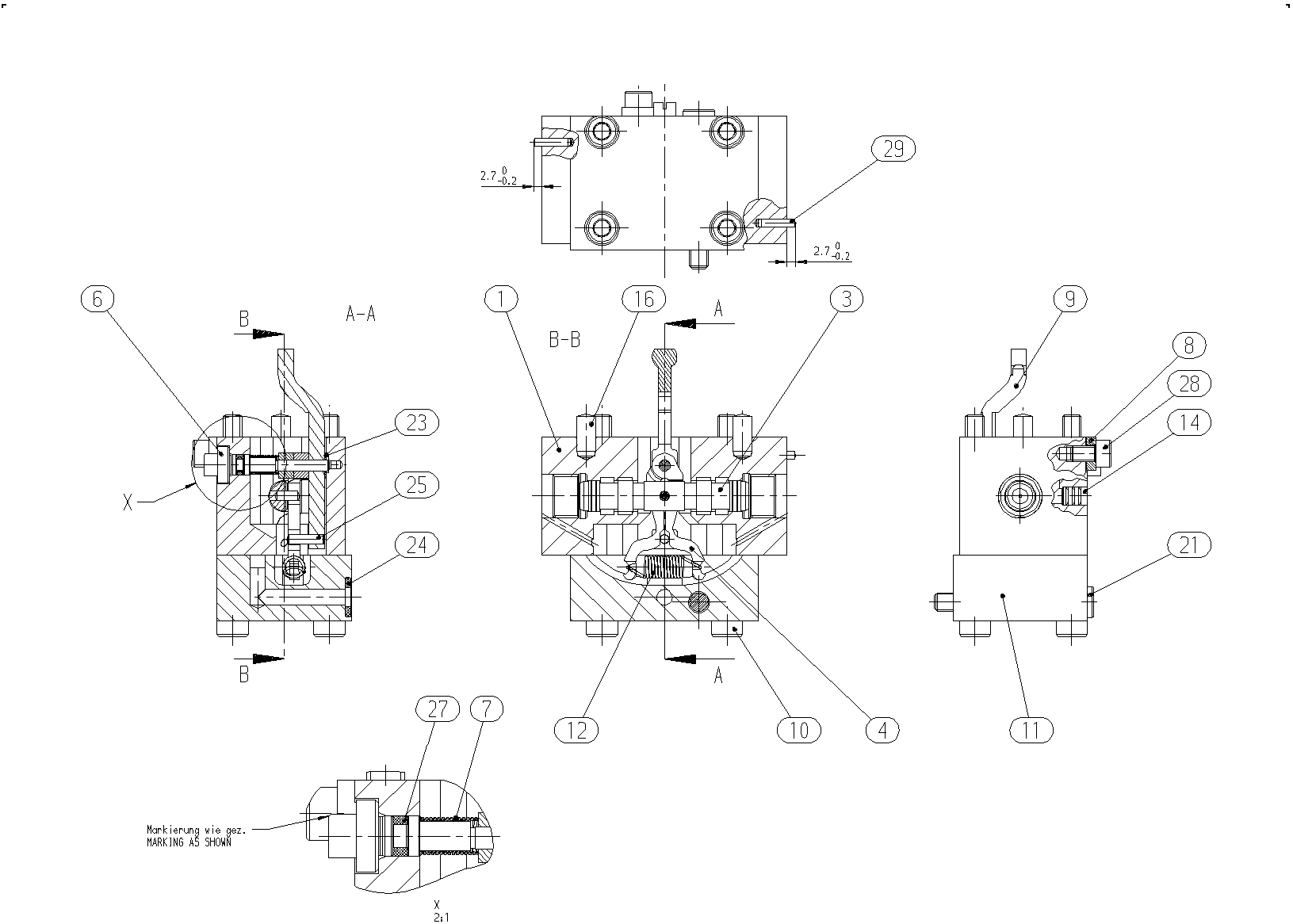

BASIC UNITR902106926
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902106932 | HOUSING | 1 | ||
| R902104120 | CONTROL PISTON | 1 | ||
| 4 | R902055588 | LEVER PAIR | 1 | |
| R902068204 | ECCENTRIC PIN | 1 | ||
| R902068165 | COMPRESSION SPRING | 1 | ||
| 8 | R902044854 | WASHER | 1 | |
| R902139026 | FEEDBACK LEVER | 1 | ||
| 10 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R902046034 | CONNECTION COVER | 1 | |
| R902089777 | EXTENSION SPRING | 1 | ||
| R902603044 | SEALING PLUG | 2 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| 24 | R902600655 | O-RINGD | 1 | |
| 26 | R902105435 | WASHER | 1 | |
| 26 | R902105436 | WASHER | 1 | |
| 26 | R902105437 | WASHER | 1 | |
| 26 | R902105438 | WASHER | 1 | |
| 26 | R902105439 | WASHER | 1 | |
| 26 | R902105440 | WASHER | 1 | |
| R909086301 | O-RING | 1 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| 29 | R902603290 | STRAIGHT PIN | 2 |
