Baugruppe

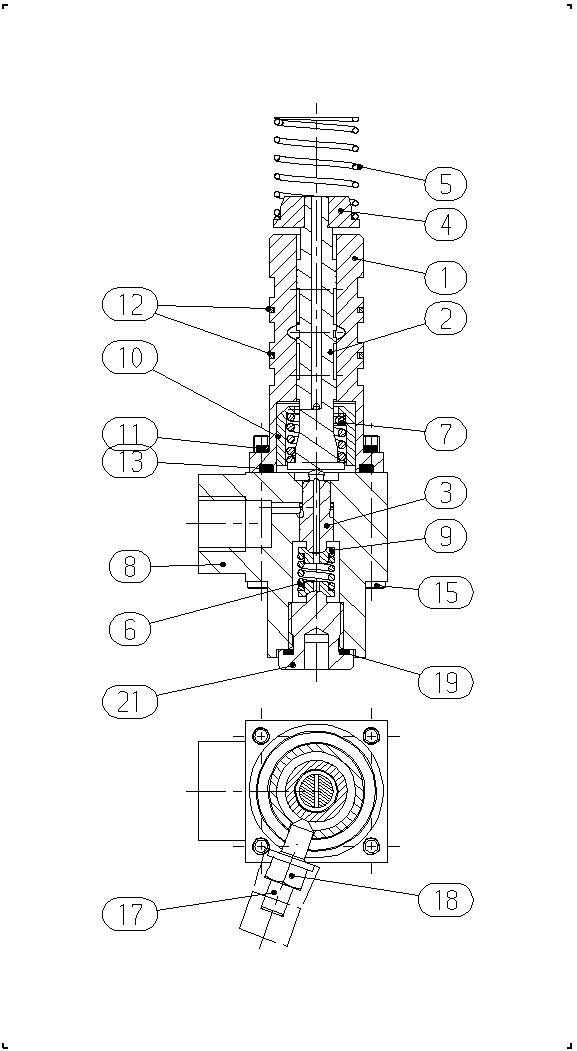

CONTROL ELEMENTR902107234
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902066811 | CONTROL SLEEVE | 1 | ||
| R902105206 | CONTROL PISTON | 1 | ||
| R902076937 | DIFFERENTIAL PISTON | 1 | ||
| R909443179 | SPRING DISK | 1 | ||
| R909652054 | COMPRESSION SPRING | 1 | ||
| R902076628 | COMPRESSION SPRING | 1 | ||
| R909449773 | COMPRESSION SPRING | 1 | ||
| R902076998 | CONNECTING PIECE | 1 | ||
| R902107273 | SPRING DISK | 2 | ||
| R902005735 | ADJUSTING BUSHING | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R902601678 | STEEL SEALING RINGD | 2 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083007 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153284 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R900012467 | SEAL RING | 1 | ||
| R902122151 | SCREW PLUG | 1 |
