Baugruppe

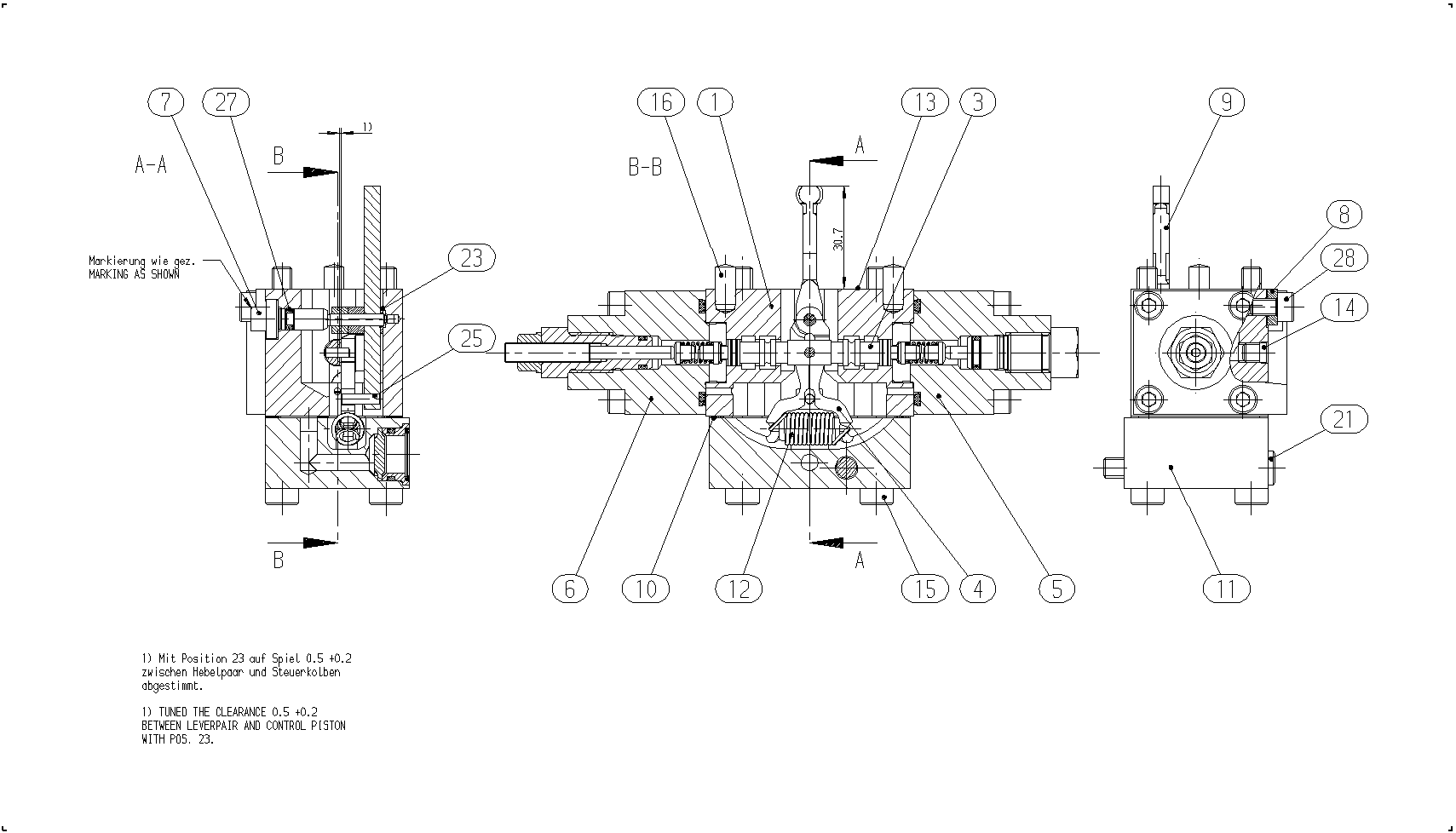

CONTROL MODULER902107330
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902254790 | HOUSING ASSEMBLY GROUP | 1 | ||
| R902074751 | CONTROL PISTON | 1 | ||
| R902162699 | LEVER PAIR | 1 | ||
| R902107283 | CONTROL MODULE ASSEMBLY Stückliste der Baugruppe →L | 1 | ||
| R902107285 | CONTROL MODULE ASSEMBLY Stückliste der Baugruppe →L | 1 | ||
| R902236102 | ECCENTRIC PIN | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902113674 | FEEDBACK LEVER | 1 | ||
| R902603830 | SEALD | 1 | ||
| R902107492 | COVER | 1 | ||
| R902050084 | EXTENSION SPRING | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 |
