Baugruppe

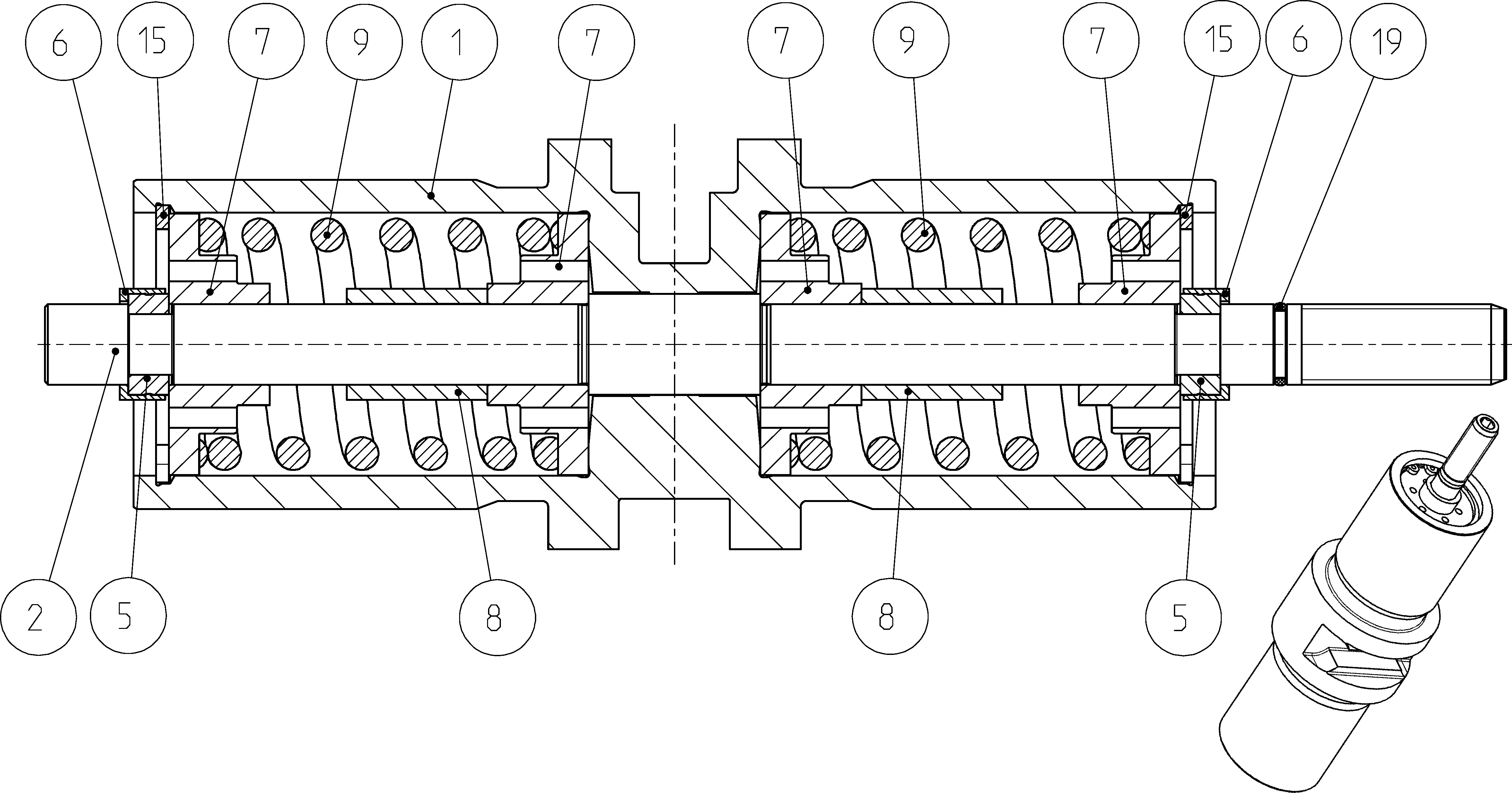

POSITIONING PISTONR902108831
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902108784 | POSITIONING PISTON | 1 | ||
| R902105710 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902105868 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R902108785 | SPRING DISK | 4 | ||
| R902095239 | SPACER BUSHING | 2 | ||
| R902095240 | SPACER BUSHING | 2 | ||
| R902095241 | SPACER BUSHING | 2 | ||
| R902095242 | SPACER BUSHING | 2 | ||
| R902095243 | SPACER BUSHING | 2 | ||
| R902108787 | COMPRESSION SPRING | 2 | ||
| R909152788 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 |
