Baugruppe

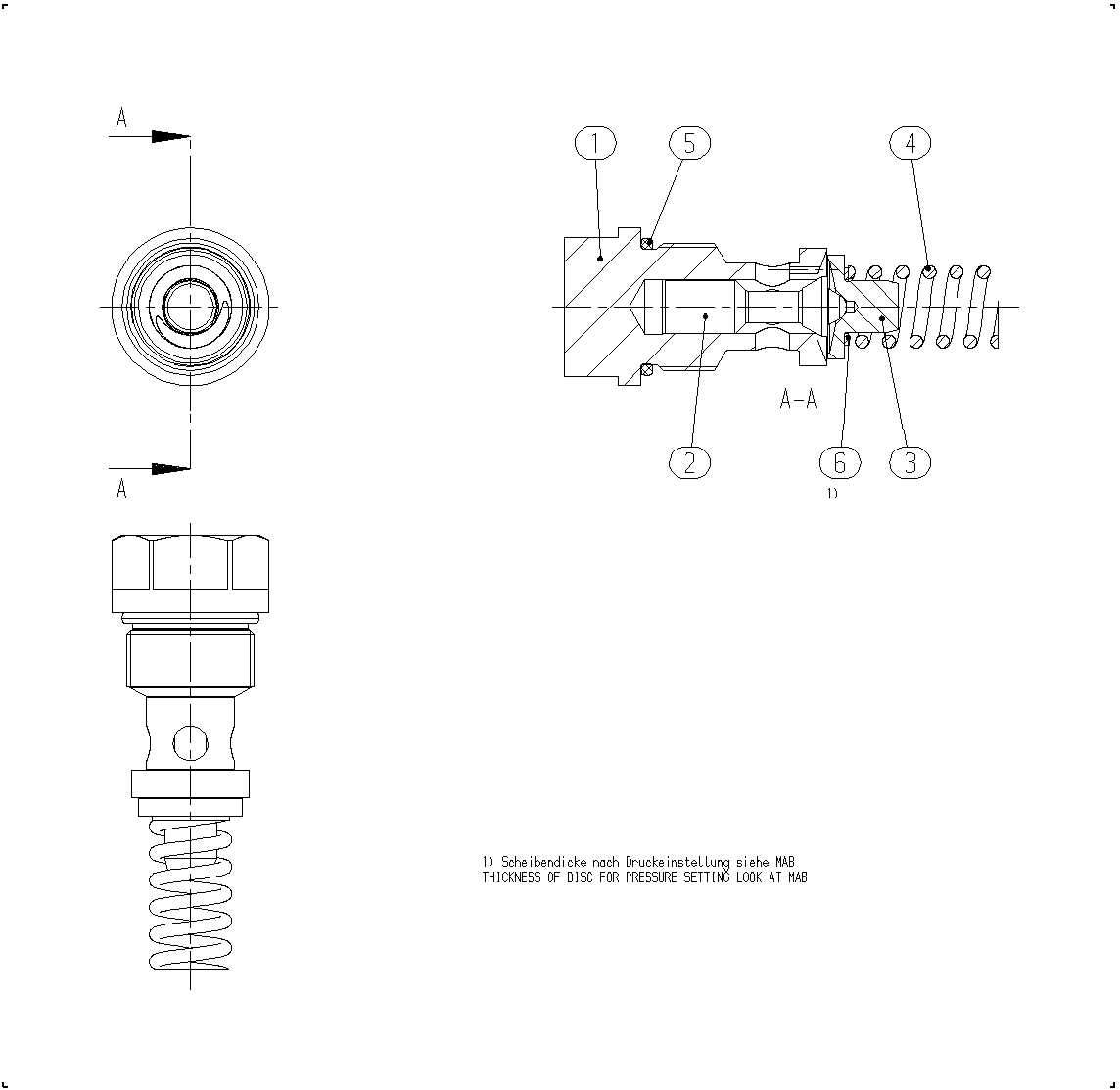

PRESSURE RELIEF VALVER902113589
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902113591 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R902089073 | VALVE SPOOL | 1 | ||
| R902089071 | SPRING DISK | 1 | ||
| R902102378 | COMPRESSION SPRING | 1 | ||
| R902600900 | O-RINGD | 1 | ||
| R909153380 | SHIM RING | 1 | ||
| 7 | R909154727 | SHIM RING | 1 | |
| 8 | R909154296 | SHIM RING | 1 | |
| 9 | R902603307 | SUPPORTING DISC | 1 | |
| 10 | R902107377 | SUPPORTING DISC | 1 | |
| 11 | R902107378 | SUPPORTING DISC | 1 |
