Baugruppe

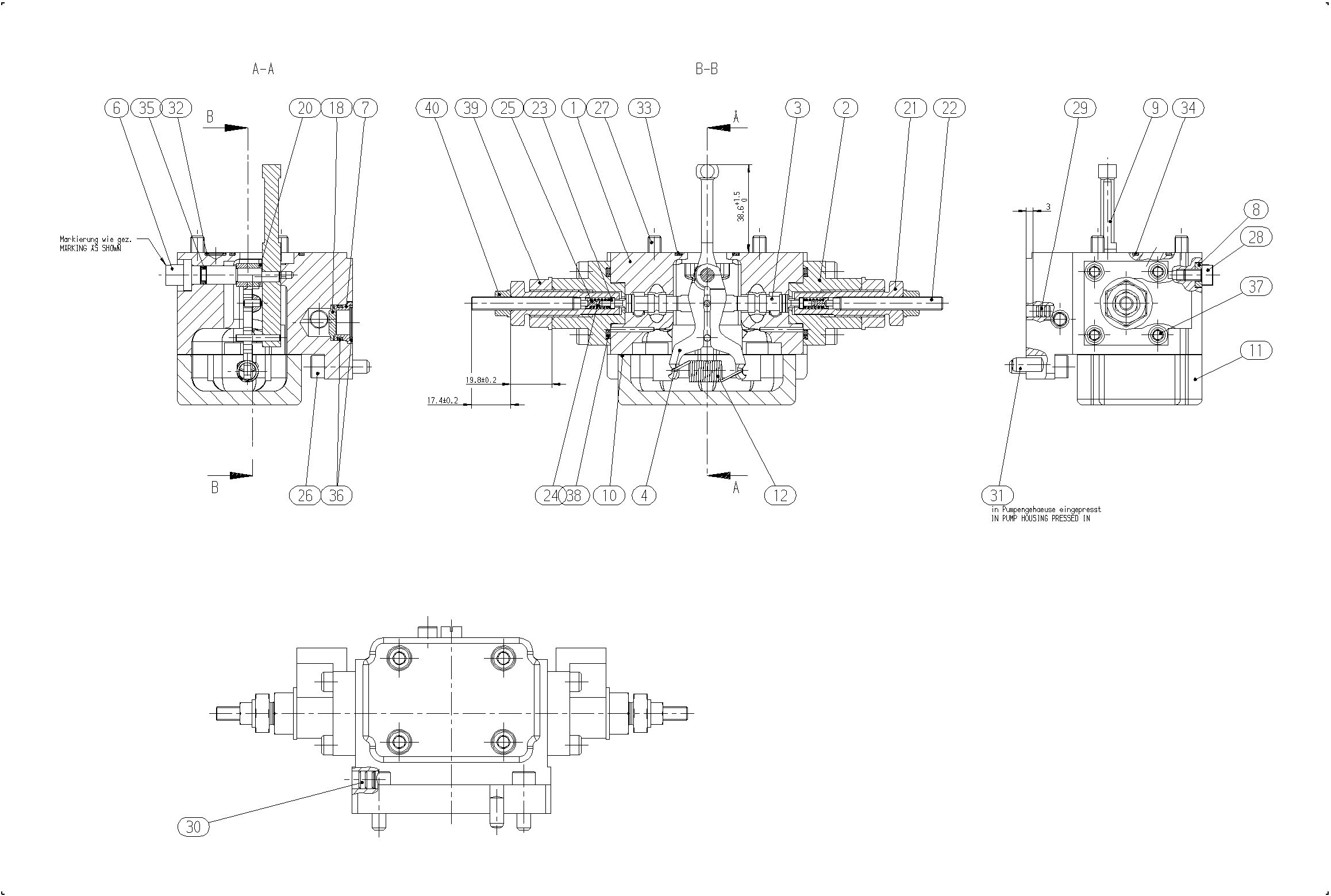

CONTROL MODULER902113988
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902113819 | HOUSING | 1 | ||
| R902107372 | HOUSING | 2 | ||
| R902067223 | CONTROL PISTON | 1 | ||
| R902206238 | LEVER PAIR | 1 | ||
| R902067212 | ECCENTRIC PIN | 1 | ||
| R902107488 | RING | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902113679 | FEEDBACK LEVER | 1 | ||
| R909651478 | SEALD | 1 | ||
| R909443201 | COVER | 1 | ||
| R902064153 | EXTENSION SPRING | 1 | ||
| R902603311 | FILTER DISC | 1 | ||
| R902067213 | WASHER | 1 | ||
| R902067214 | WASHER | 1 | ||
| R902067215 | WASHER | 1 | ||
| R902067216 | WASHER | 1 | ||
| R902067217 | WASHER | 1 | ||
| R902067218 | WASHER | 1 | ||
| R902067219 | WASHER | 1 | ||
| R902067220 | WASHER | 1 | ||
| R902070232 | WASHER | 1 | ||
| R902053238 | ADJUSTING SCREW | 2 | ||
| R902053239 | SETSCREW | 2 | ||
| R902053237 | SPRING DISK | 2 | ||
| R909443395 | COMPRESSION SPRING | 2 | ||
| R909443400 | SPRING DISK | 2 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| R902602838 | SEALING PLUG | 2 | ||
| R902603136 | SEALING PLUG | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086523 | O-RINGD | 2 | ||
| R909153668 | O-RINGD | 1 | ||
| R909086333 | O-RINGD | 2 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083764 | O-RINGD | 2 | ||
| R909087405 | SEALING NUT | 2 | ||
| R909152425 | SEALING NUT | 2 | ||
| 98 | R902002418 | SEAL KIT | 1 |
