Baugruppe

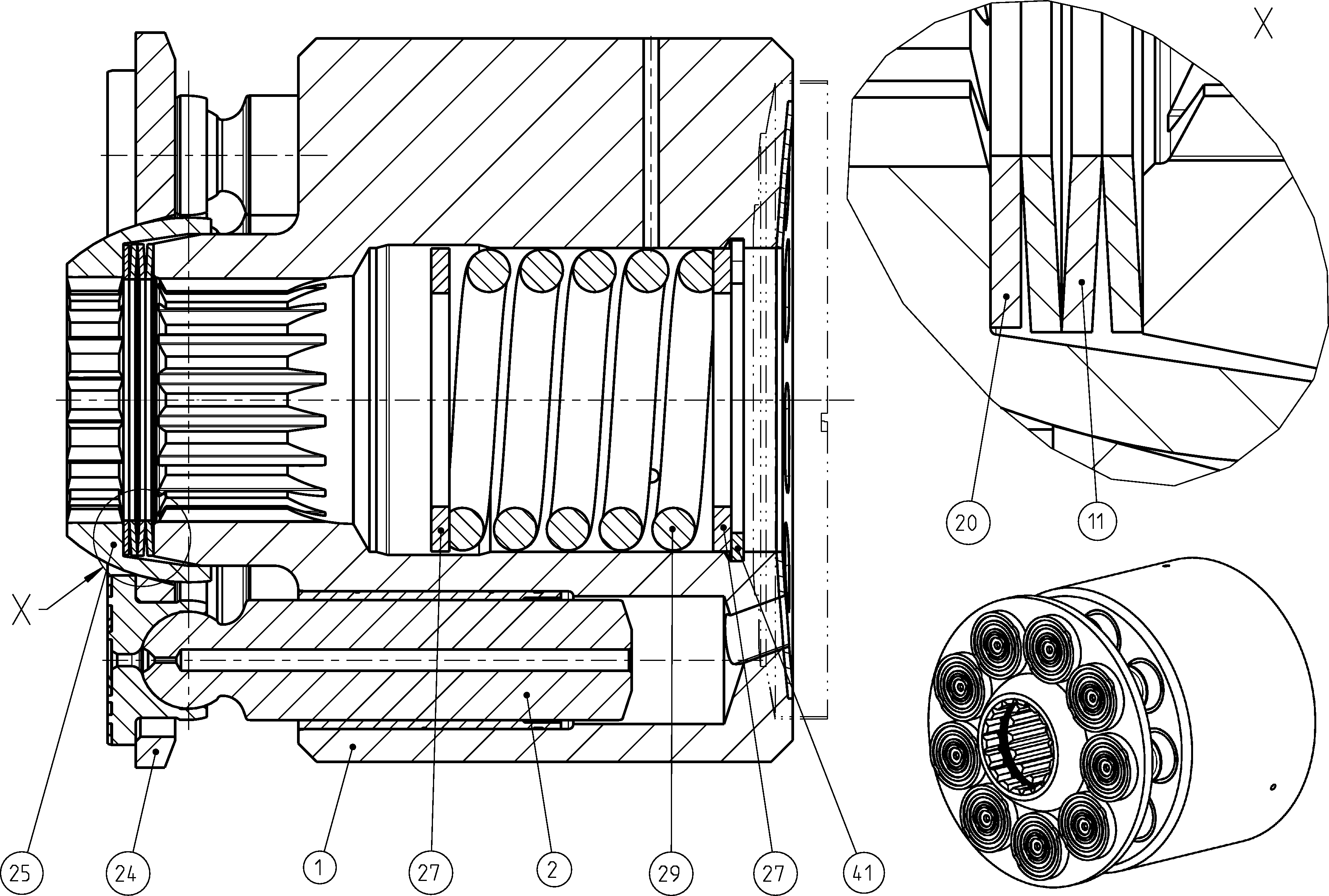

ROTARY GROUPR902114113
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902094403 | CYLINDER | 1 | ||
| R902118912 | PISTON PAD | 9 | ||
| R902127869 | CUP-SPRING STACK | 1 | ||
| R902094141 | SHIM RING | 1 | ||
| R902094142 | SHIM RING | 1 | ||
| R902094143 | SHIM RING | 1 | ||
| R902094144 | SHIM RING | 1 | ||
| R902210069 | RETAINING PLATE | 1 | ||
| R902240830 | RETAINING BALL | 1 | ||
| R902114112 | WASHER Stückliste der Baugruppe →L | 2 | ||
| R902114105 | COMPRESSION SPRING | 1 | ||
| R909084444 | RETAINING RING | 1 |
