Baugruppe

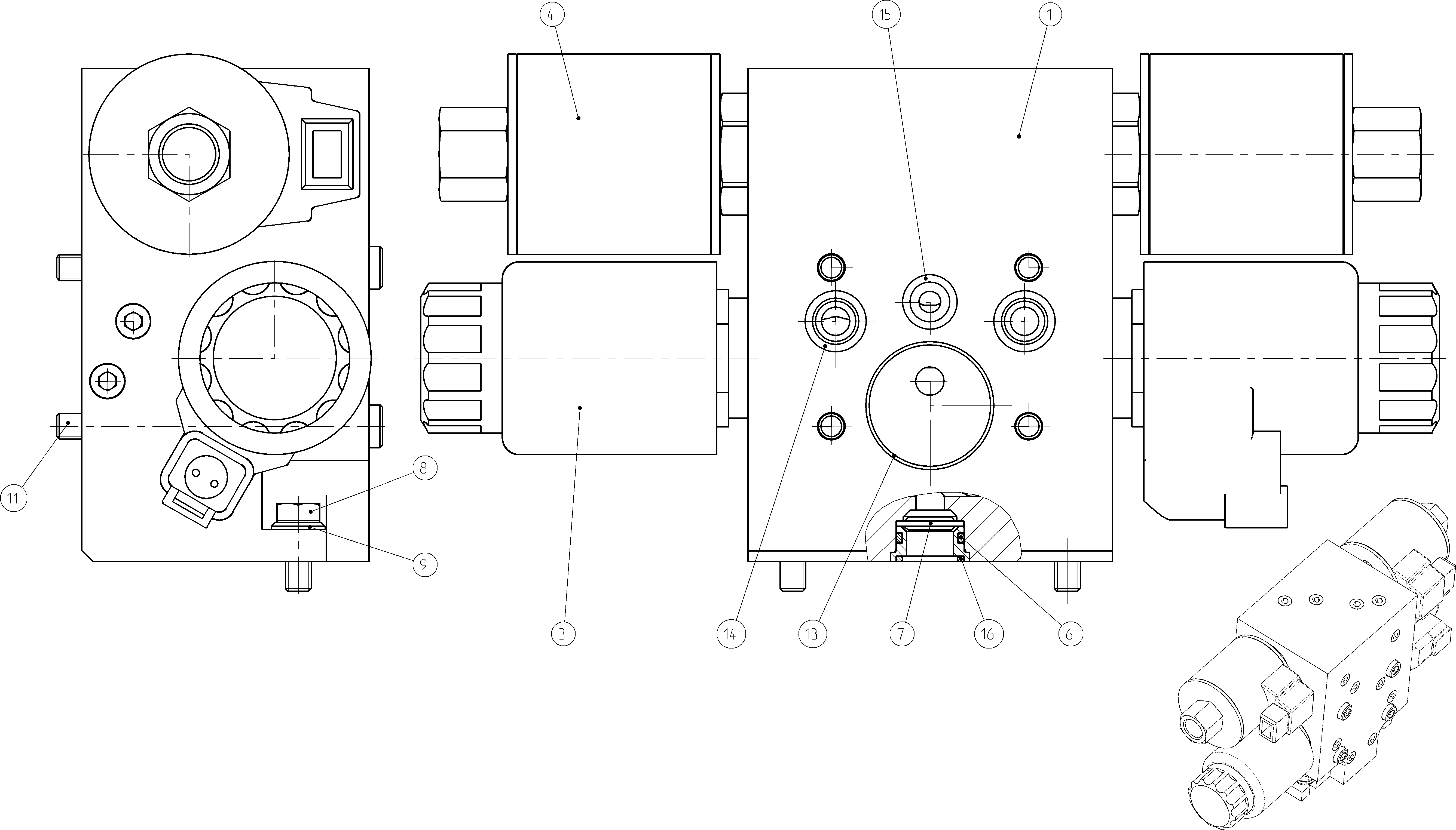

DIRECTIONAL-CONTROL VALVER902115017
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902113788 | VALVE HOUSING Stückliste der Baugruppe →L | 1 | ||
| R901156485 | PRESSURE REDUCING VALVE | 2 | ||
| R902603479 | POPPET DIRECTIONAL VALVE | 2 | ||
| R902107488 | RING | 1 | ||
| R902603311 | FILTER DISC | 1 | ||
| R909083686 | HEXAGON SCREW | 2 | ||
| — | WASHER | 2 | ||
| R909085700 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600649 | O-RING | 1 | ||
| R909157915 | O-RING | 2 | ||
| R909086487 | O-RING | 1 | ||
| R909154236 | O-RING | 2 |
