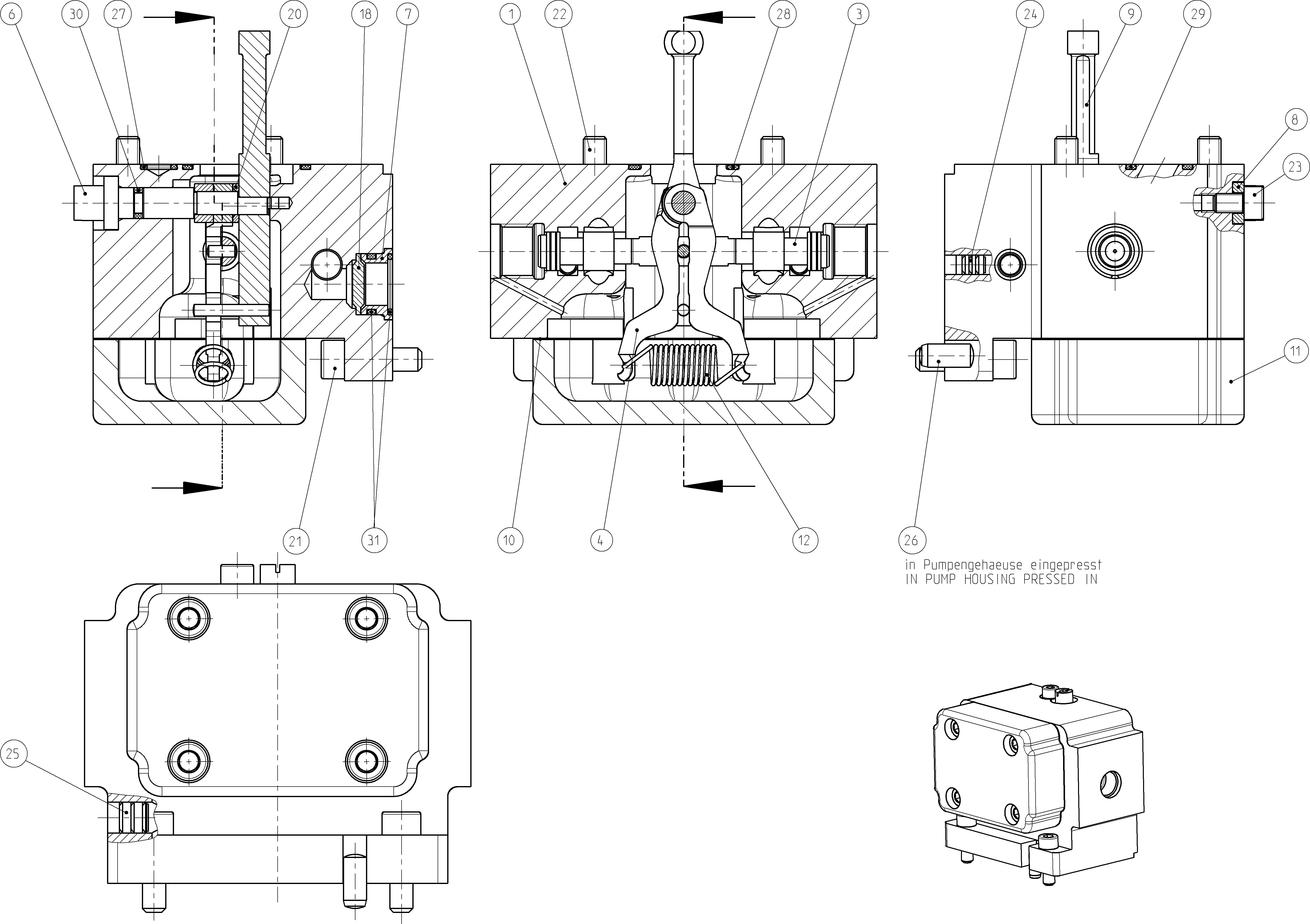

Baugruppe
BASIC UNITR902115088
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902115385 | HOUSING | 1 | ||
| R902106775 | CONTROL PISTON | 1 | ||
| R902206238 | LEVER PAIR | 1 | ||
| R902067212 | ECCENTRIC PIN | 1 | ||
| R902107488 | RING | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902113678 | FEEDBACK LEVER | 1 | ||
| R909651478 | SEALD | 1 | ||
| 11 | R909443201 | COVER | 1 | |
| R902063327 | EXTENSION SPRING | 1 | ||
| R902603311 | FILTER DISC | 1 | ||
| R902067213 | WASHER | 1 | ||
| R902067214 | WASHER | 1 | ||
| R902067215 | WASHER | 1 | ||
| R902067216 | WASHER | 1 | ||
| R902067217 | WASHER | 1 | ||
| R902067218 | WASHER | 1 | ||
| R902067219 | WASHER | 1 | ||
| R902067220 | WASHER | 1 | ||
| R902070232 | WASHER | 1 | ||
| 21 | R909083021 | SOCKET HEAD CAP SCREW | 2 | |
| 22 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 23 | R902601243 | SOCKET HEAD CAP SCREW | 1 | |
| 24 | R902602838 | SEALING PLUG | 2 | |
| 25 | R902603136 | SEALING PLUG | 1 | |
| R913009677 | STRAIGHT PIN | 1 | ||
| 27 | R909086380 | O-RINGD | 1 | |
| R902600641 | O-RINGD | 1 | ||
| 29 | R909086523 | O-RINGD | 2 | |
| 30 | R909153668 | O-RINGD | 1 | |
| R909086333 | O-RINGD | 2 |
