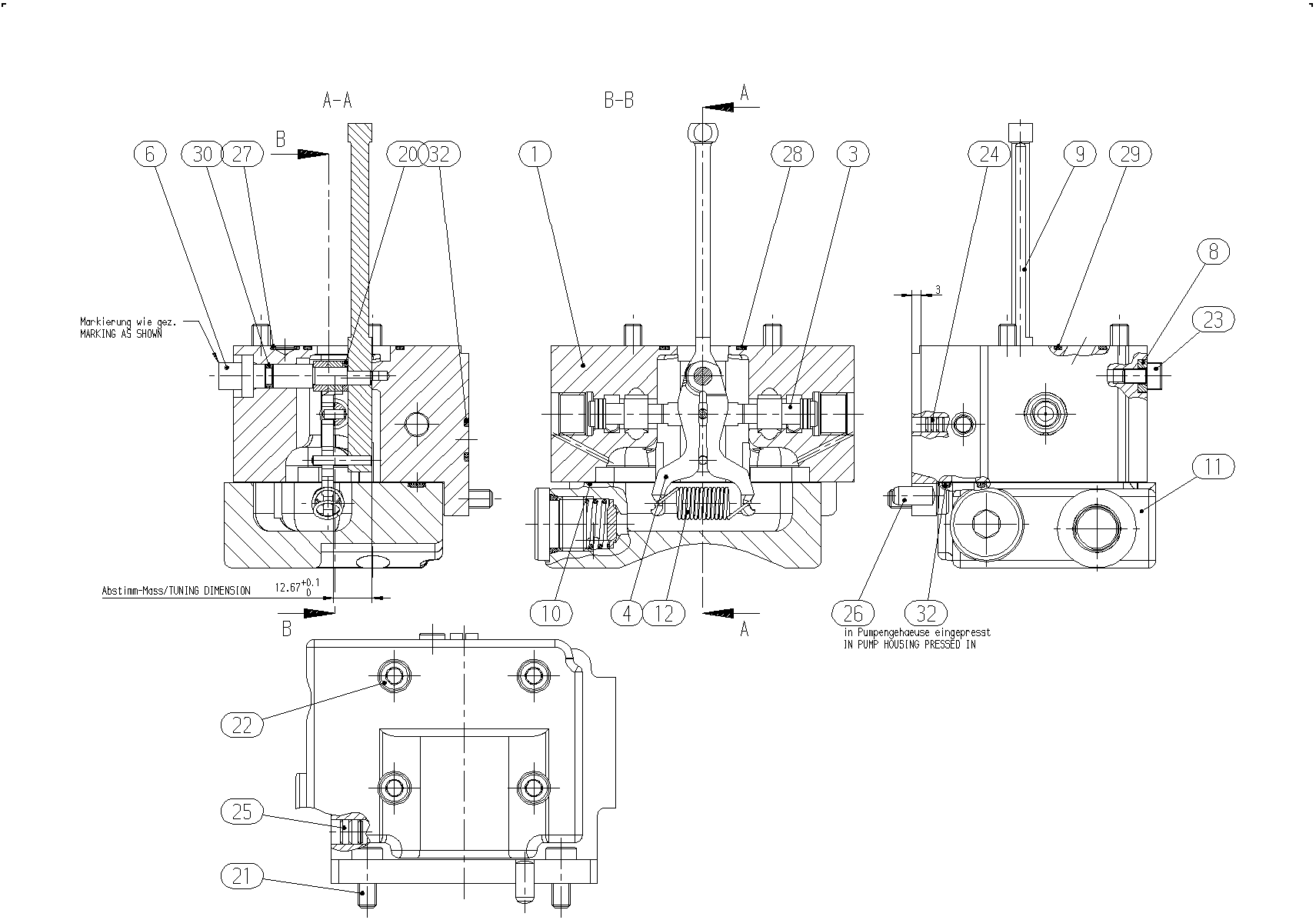

Baugruppe
BASIC UNITR902115183
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902113746 | HOUSING | 1 | ||
| R902106775 | CONTROL PISTON | 1 | ||
| R902206238 | LEVER PAIR | 1 | ||
| R902067212 | ECCENTRIC PIN | 1 | ||
| R902044854 | WASHER | 1 | ||
| 9 | R902113681 | FEEDBACK LEVER | 1 | |
| 10 | R909651478 | SEALD | 1 | |
| 11 | R902128643 | COVER | 1 | |
| R902063327 | EXTENSION SPRING | 1 | ||
| 20 | R902067213 | WASHER | 1 | |
| 20 | R902067214 | WASHER | 1 | |
| 20 | R902067215 | WASHER | 1 | |
| 20 | R902067216 | WASHER | 1 | |
| 20 | R902067217 | WASHER | 1 | |
| 20 | R902067218 | WASHER | 1 | |
| 20 | R902067219 | WASHER | 1 | |
| 20 | R902067220 | WASHER | 1 | |
| 20 | R902070232 | WASHER | 1 | |
| R909083187 | SOCKET HEAD CAP SCREW | 2 | ||
| R909085700 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| R902602838 | SEALING PLUG | 2 | ||
| R902603136 | SEALING PLUG | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086523 | O-RINGD | 2 | ||
| R909153668 | O-RINGD | 1 | ||
| R909086178 | O-RINGD | 2 |
